Product Description
68SSTE low-voltage/AC series servo motors are high-performance equipment designed specifically for demanding industrial environments. This motor combines powerful technical parameters and circular design, making it renowned for its excellent load capacity and adaptability, suitable for various complex and demanding industrial applications, such as automated manufacturing, machining centers, and other high-end equipment that require precise power control. Its circular structure is not only convenient for integration and installation, but also particularly important in the industrial field due to its optimized torque management and energy efficiency ratio.
Baolong supply motor Brand, model and voltage All these must be taken into consideration such as MPL servo motor, servo motor 100W, and servomotor 230V are three different specifications related to servo motors:
MPL Servo Motor: MPL servo motors are a specific brand or model of servo motors. MPL Systems is a company that specializes in the manufacturing of high-performance servo motors and motion control solutions. MPL servo motors are known for their precision, reliability, and wide range of applications in industries such as robotics, automation, and manufacturing.
Servo Motor 100W: Servo motors are available in various power ratings, and "servo motor 100W" refers to a servo motor with a power output of 100 watts. Power rating is an important consideration when selecting a servo motor as it determines the motor's ability to generate torque and drive the load. A servo motor with a 100W power rating would be suitable for applications with lower power requirements.
Servomotor 230V: "Servomotor 230V" indicates a servo motor designed to operate on a 230-volt power supply. Voltage rating is a critical specification to ensure compatibility between the servo motor and the power source or control system. A servomotor with a 230V rating is typically used in regions or applications where the standard power supply voltage is 230 volts.
Electrical Specifications
| Motor Model | 68SSTE482030 | 68SSTE483030 | 68SSTE484030 | 68SSTE2202030 | 68SSTE2204030 |
| Number of Phase | 3 | 3 | |||
| Number of Poles | 8 | 8 | |||
| Rated Voltage(VAC) | 48 | 220 | |||
| Rated Speed(Rpm) | 3000 | 3000 | |||
| Rated Torque(N.m) | 0.64 | 0.96 | 1.27 | 0.64 | 1.27 |
| Rated Power(W) | 200 | 300 | 400 | 200 | 400 |
| Rated Current(A) | 5.5 | 8.3 | 11 | 1.45 | 2.9 |
| Peak Current(A) | 16.5 | 24.9 | 33 | 4.35 | 8.7 |
| Peak Torque(N.M) | 1.92 | 2.88 | 3.81 | 1.92 | 3.81 |
| Rotor Inertia(kg.cm2) | 0.25 | 0.35 | 0.45 | 0.25 | 0.45 |
| Torque Constant(N.m/A) | 0.11 | 0.11 | 0.11 | 0.44 | 0.44 |
| Torque Constant(V/krpm) | 10.5 | 10.5 | 10.5 | 29 | 29 |
| Line-Line Resistance(Ω) | 0.2 | 0.3 | 0.4 | 10 | 2.2 |
| Line-Line Inductance(mH) | 0.4 | 0.5 | 0.6 | 11 | 5.5 |
| Length(mm) | 72 | 86 | 100 | 72 | 100 |
| Weight(kg) | 0.6 | 1 | 1.4 | 0.6 | 1.4 |
| Encoder Resolution（P/R) | 1000,1024,2500/17bit,23bit | ||||
Wiring Diagram

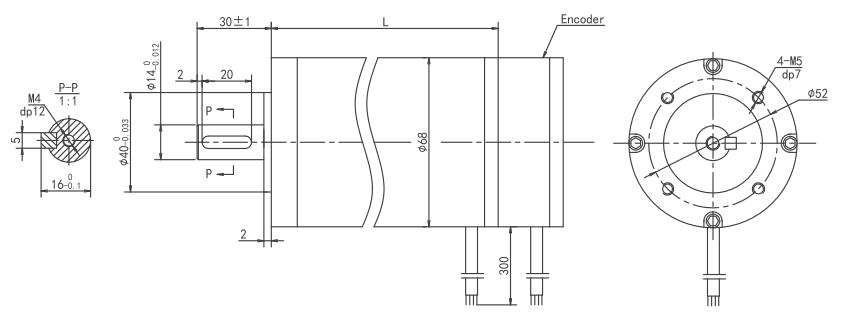

Dimensions(Unit: mm)
