Product Description
The 14WLSE series DC brushless motor combines compact design with advanced control technology, providing an ideal solution for automation fields that require high efficiency and precision operation. This series of motors is particularly suitable for use in space limited environments, such as precision machinery and automation devices. Its brushless construction reduces maintenance requirements, improves operational lifespan and efficiency. The motor is equipped with a built-in position sensor and an efficient electronic drive system, ensuring precise response to various control commands and achieving seamless power output and speed adjustment. This makes the 14WLSE series motors an ideal choice for those seeking reliable, high-performance electric solutions.
baolong motor offer brushless linear motors, hollow shaft BLDC motors, or low RPM brushless motors overview
A brushless linear motor is a type of motor that converts electrical energy directly into linear motion, as opposed to rotational motion like traditional motors. It typically consists of a stator and a forcer (or mover) that contains magnets. By applying current to the stator windings, a magnetic field is generated, which interacts with the magnetic field of the forcer to produce linear motion. Brushless linear motors offer advantages such as high acceleration, precise positioning, high efficiency, and low maintenance. They are used in various applications such as robotics, machine tools, semiconductor manufacturing, and more.
A hollow shaft BLDC motor, also known as a through-hole BLDC motor, features a central opening or hollow shaft that extends through the center of the motor. This design allows for convenient passage of cables, optics, or other mechanical components through the motor's axis. Hollow shaft BLDC motors are commonly used in applications where space-saving, compact design, and integration with other components are essential. They find applications in robotics, rotary tables, automation systems, and other fields where the ability to pass through a shaft is required.
A low RPM brushless motor refers to a brushless motor designed to operate at low rotational speeds. The RPM (rotations per minute) of a motor depends on its design, voltage, and load conditions. Low RPM brushless motors are typically designed with specific gear ratios, pole configurations, or winding arrangements to achieve low speeds while maintaining torque output.
Electrical Specifications
| Motor Model | 14WLSE241640 | 14WLSE242540 | 14WLSE243340 |
| Number of Phase | 3 | ||
| Number of Poles | 8 | ||
| Rated Voltage (VDC) | 24 | ||
| Rated Speed (Rpm) | 4000 | ||
| Rated Torque (N.m) | 0.04 | 0.06 | 0.08 |
| Rated Power (W) | 16.7 | 25 | 33.5 |
| Rated Current (A) | 0.8 | 1.25 | 1.7 |
| Peak Current (A) | 2.4 | 3.75 | 5.2 |
| Peak Torque (N.M) | 0.12 | 0.18 | 0.24 |
| Rotor Inertia (kg.cm²) | 0.02 | 0.02 | 0.03 |
| Torque Constant (N.m/A) | 0.05 | 0.05 | 0.05 |
| Torque Constant (V/krpm) | 4.5 | 4.6 | 4.5 |
| Line-Line Resistance (Ω) | 2.5 | 3.1 | 3.4 |
| Line-Line Inductance (mH) | 1.1 | 1.2 | 1.3 |
| Length (mm) | 49 | 59 | 69 |
| Weight (kg) | 0.34 | 0.5 | 0.66 |

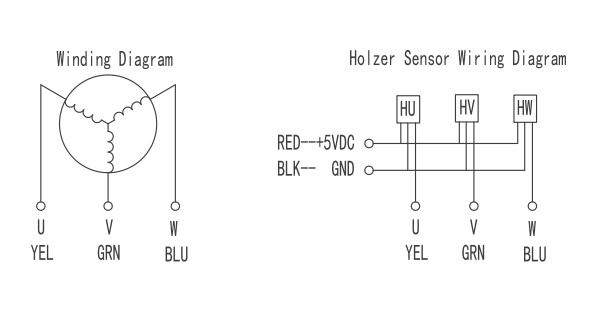

Wiring Diagram

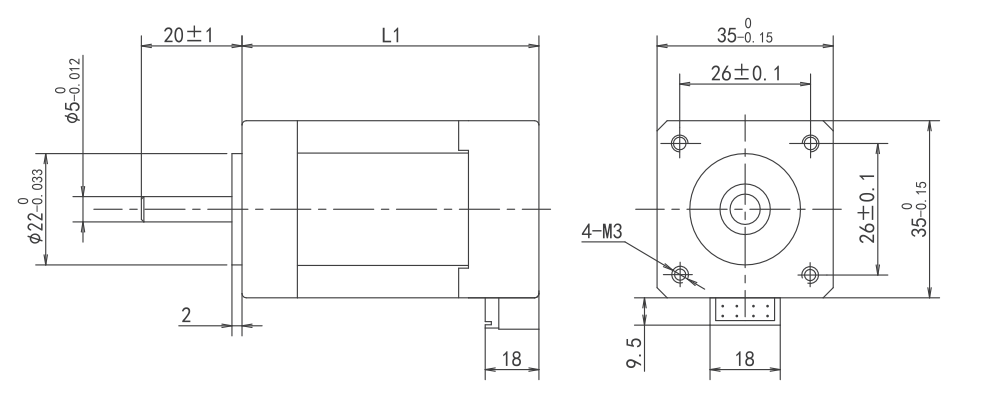

Dimensions(Unit: mm)
