Product Description
The 17WLSE series motors adopt a brushless design, which not only reduces maintenance requirements but also improves the efficiency and service life of the motor. Brushless technology eliminates friction and wear caused by brushes and commutators, making motor operation smoother and quieter. In addition, the motor is equipped with an advanced control system that can accurately respond to power and speed adjustment instructions, improving the response speed and accuracy of the entire system.
It is designed for technical fields and industrial applications that require efficient, reliable, and high-performance electric solutions. Whether used for robots, automated assembly lines, or precision instruments, this motor can provide the necessary power and control performance to meet stringent operational requirements.
Brushless motors offer excellent performance and efficiency in various applications. When it comes to 48V BLDC motors, 48V brushless motor kits, and brushless DC motor controllers 48V, these components play a crucial role in delivering reliable and powerful motor control.
The 48V BLDC motor is a high-quality motor designed to operate efficiently with a 48-volt power supply. Its robust construction and advanced design ensure optimal performance, making it suitable for a wide range of applications. Whether it's powering electric vehicles, industrial machinery, or robotics, the 48V BLDC motor provides the necessary torque and speed to meet demanding requirements.
To simplify the integration of the 48V brushless motor into various systems, a 48V brushless motor kit is an ideal solution. This comprehensive kit includes not only the motor itself but also accompanying components such as mounting brackets, connectors, and wiring harnesses. With a 48V brushless motor kit, users can save time and effort in sourcing individual parts and ensure compatibility for a seamless installation.
To control the operation of the 48V brushless motor, a brushless DC motor controller 48V is essential. This controller acts as the brain of the system, managing the motor's speed, direction, and other parameters. The 48V brushless DC motor controller incorporates advanced control algorithms and interfaces for smooth operation and precise control. It enables seamless integration with other control systems and supports various communication protocols for flexibility and compatibility.
Electrical Specifications
| Motor Model | 17WSTE483030 | 17WSTE486030 | 17WSTE489030 |
| Number of Phase | 3 | ||
| Number of Poles | 8 | ||
| Rated Voltage (VDC) | 48 | ||
| Rated Speed (Rpm) | 3000 | ||
| Rated Torque (N.m) | 0.1 | 0.2 | 0.3 |
| Rated Power (W) | 31 | 63 | 94 |
| Rated Current (A) | 0.87 | 1.74 | 2.61 |
| Peak Current (A) | 2.6 | 5.2 | 7.8 |
| Peak Torque (N.M) | 0.3 | 0.6 | 0.9 |
| Rotor Inertia (kg.cm²) | 0.039 | 0.045 | 0.052 |
| Torque Constant (N.m/A) | 0.115 | 0.115 | 0.115 |
| Torque Constant (V/krpm) | 12 | 12 | 12 |
| Line-Line Resistance (Ω) | 1.9 | 1.4 | 0.8 |
| Line-Line Inductance (mH) | 1.5 | 1.1 | 0.6 |
| Length (mm) | 47 | 67 | 87 |
| Weight (kg) | 0.4 | 0.9 | 1 |

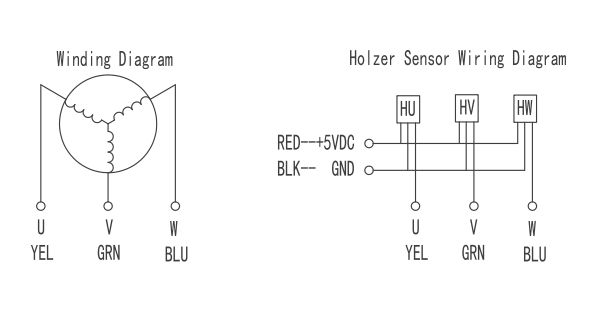

Wiring Diagram

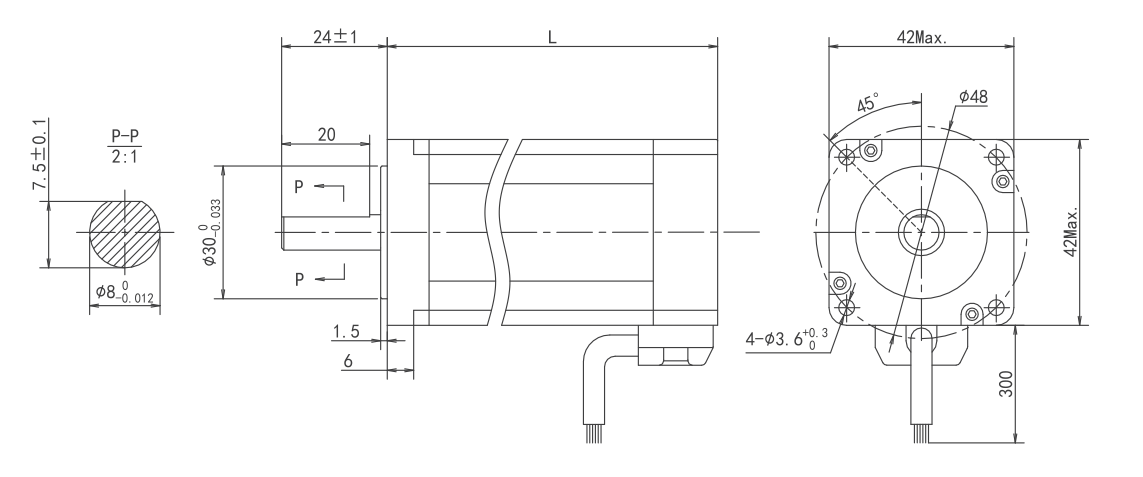

Dimensions(Unit: mm)
