Product Description
The brushless design of the 28BSTE series motors reduces maintenance requirements and improves overall lifespan and performance stability. The motor adopts modern electronic control technology and is equipped with high-precision sensors to monitor and adjust the speed and torque, ensuring that every action is accurate and reliable. In addition, its advanced driving system can accurately control the various states of the motor, and can respond quickly and smoothly from startup to high-speed operation.
Suitable for automated machinery, advanced manufacturing equipment, and precision processes, the 28BSTE series motors are an ideal choice for seeking efficient and long-lasting solutions, especially in situations where uninterrupted high-performance output is required.
Brushless motors are known for their efficiency and versatility in various applications. When considering brushless motors, the characteristics of a 48v dc motor high torque, a 48 volt DC motor speed controller, and a 48 volt BLDC motor controller become important aspects to explore. Additionally, the use of a low KV brushless motor adds to the discussion.
A 48v dc motor high torque is designed to deliver substantial rotational force while operating on a 48 volt DC power supply. These motors are ideal for applications that require heavy-duty performance, such as electric vehicles, industrial machinery, and robotics.
To control the speed and direction of a 48V DC motor, a 48 volt DC motor speed controller is essential. This device regulates the motor's voltage and current, allowing precise control over its rotational speed. With features such as adjustable acceleration and deceleration rates, speed feedback mechanisms, and protection functions, the 48-volt DC motor speed controller provides smooth and reliable control over motor operation.
A 48 volt BLDC motor controller specifically caters to the needs of brushless motors operating on a 48 volt power supply. These controllers are designed to accurately commutate the motor's windings, ensuring optimal performance and efficiency.
When seeking a low KV brushless motor, you're looking for a motor with a low RPM per volt rating. These motors are designed to provide high torque output at lower speeds, making them suitable for applications requiring precise control and heavy lifting capabilities. Low KV brushless motors are commonly used in aerial drones, robotic arms, and electric skateboards, where torque and control at lower speeds are critical.
Electrical Specifications
| Motor Model | 28BSTE481530 | 28BSTE482130 |
| Number of Phase | 3 | |
| Number of Poles | 8 | |
| Rated Voltage (VDC) | 48 | |
| Rated Speed (Rpm) | 3000 | |
| Rated Torque (N.m) | 0.5 | 0.67 |
| Rated Power (W) | 157 | 210 |
| Rated Current (A) | 4.1 | 5.8 |
| Peak Current (A) | 12.3 | 17.4 |
| Peak Torque (N.M) | 1.5 | 2.01 |
| Rotor Inertia (kg.cm²) | 0.86 | 0.92 |
| Torque Constant (N.m/A) | 0.122 | 0.115 |
| Torque Constant (V/krpm) | 12.76 | 11.2 |
| Line-Line Resistance (Ω) | 0.93 | 0.8 |
| Line-Line Inductance (mH) | 0.85 | 0.7 |
| Length (mm) | 88 | 98 |
| Weight (kg) | 1.34 | 1.5 |

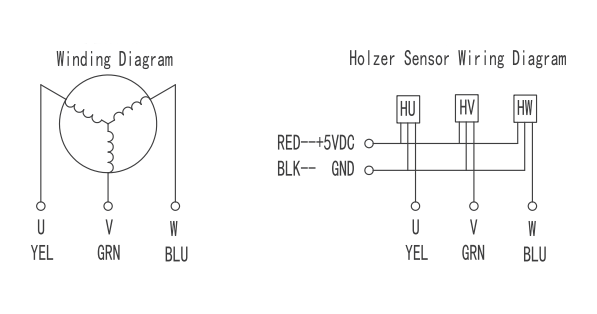

Wiring Diagram

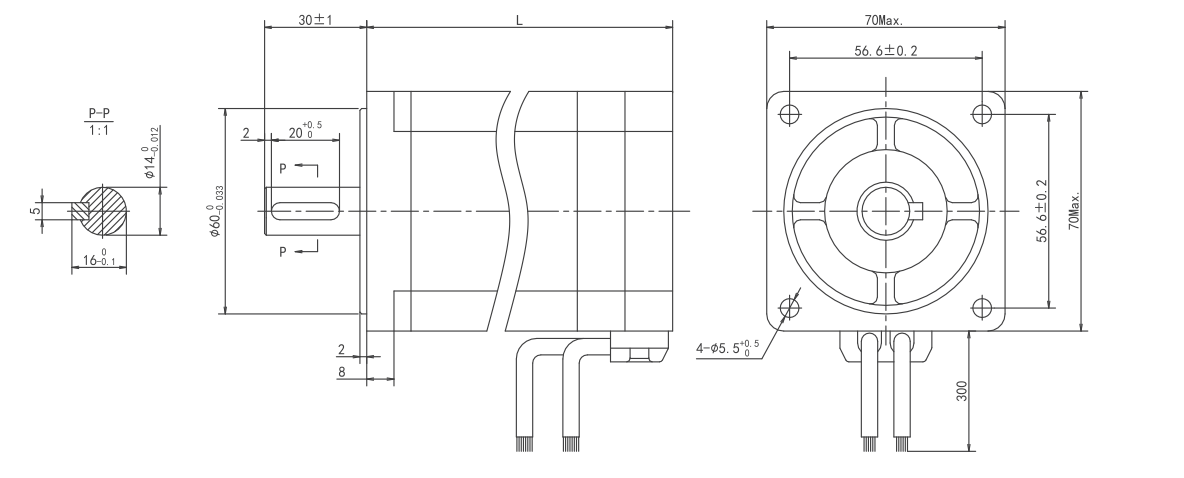

Dimensions(Unit: mm)
