Product Description
The brushless technology of the 34WSTE series motors reduces mechanical wear and maintenance requirements, improves operating efficiency and lifespan. The built-in high-precision sensors allow for precise control of speed and position, which is crucial for precision applications. The design of brushless motors means higher energy efficiency, lower thermal output and noise, making them an ideal choice for automated machinery, high-performance pump systems, and advanced robot solutions.
Based on these characteristics, the 34WSTE series DC brushless motors are the preferred choice for industrial applications seeking long-lasting, efficient, and powerful power sources.
Brushless motors are widely recognized for their efficiency and versatility in numerous applications. In this context, we can explore the features of a motor brushless 24v, a 48V 250W BLDC motor controller, and small BLDC motors, emphasizing their importance in the brushless motor landscape.
The motor brushless 24v is a compact and reliable motor designed to operate efficiently with a 24-volt power supply. With its optimized design and high-quality construction, the motor brushless 24v delivers reliable performance in various applications. From robotics and automation to consumer electronics and automotive systems, the motor brushless 24v offers a balance between power and size, making it suitable for small-scale applications.
To control the operation of a 48V 250W BLDC motor, a dedicated motor controller is essential. The 48V 250W BLDC motor controller acts as the brain of the system, regulating the power input and providing precise control over motor speed and torque. With its advanced control algorithms and communication interfaces, the 48V 250W BLDC motor controller ensures efficient and reliable motor performance. It's commonly used in electric bikes, scooters, and other transportation devices, where a balance between power and efficiency is crucial.
Small BLDC motors are compact-sized motors that offer high power density and precise control. These motors find applications in various industries, including robotics, HVAC systems, and medical devices, where space is limited but performance is critical.
Electrical Specifications
| Motor Model | 34WSTE482230 | 34WSTE483130 |
| Number of Phase | 3 | |
| Number of Poles | 8 | |
| Rated Voltage (VDC) | 48 | |
| Rated Speed (Rpm) | 3000 | |
| Rated Torque (N.m) | 0.7 | 1 |
| Rated Power (W) | 220 | 310 |
| Rated Current (A) | 5.8 | 8.6 |
| Peak Current (A) | 17.4 | 25.8 |
| Peak Torque (N.M) | 2.1 | 3 |
| Rotor Inertia (kg.cm²) | 1.6 | 1.9 |
| Torque Constant (N.m/A) | 0.12 | 0.11 |
| Torque Constant (V/krpm) | 11 | 10.5 |
| Line-Line Resistance (Ω) | 0.6 | 0.5 |
| Line-Line Inductance (mH) | 0.5 | 0.4 |
| Length (mm) | 66.5 | 80.5 |
| Weight (kg) | 1.8 | 2.2 |
Wiring Diagram

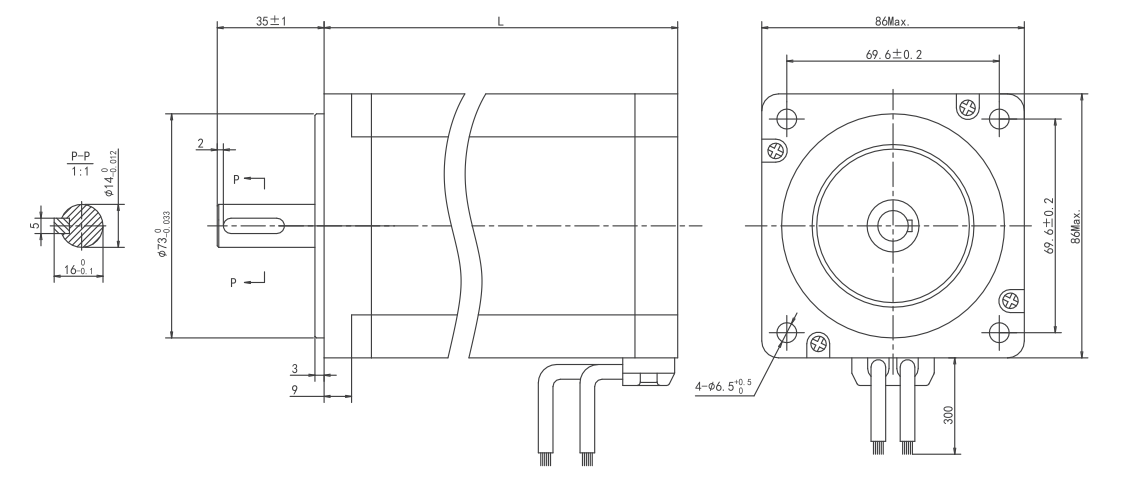

Dimensions(Unit: mm)
