Product Description
The 32RLSE series motors adopt a brushless design, reducing maintenance requirements and improving operational efficiency and lifespan. This design ensures smoother and quieter motor operation by eliminating friction and wear caused by brushes and commutators. The built-in high-precision sensors provide precise speed and position feedback, making the motor particularly effective in automated control systems.
This motor is particularly suitable for high-precision medical equipment, automation instruments, small robot technology, and other fields that require small, efficient motor solutions. Its high performance and reliability make it the preferred choice for designers and engineers seeking excellent operational performance.
The 24 volt brushless motor is a popular choice in various applications, offering a balance between power and efficiency. With a 24 volt power supply, this motor provides reliable performance in applications such as electric scooters, robotics, and small electric vehicles. Its voltage rating allows for efficient power consumption while delivering sufficient torque and speed for the intended application.
A low speed brushless motor is designed specifically to operate at lower rotational speeds. These motors are commonly used in applications where precise control and smooth operation at low speeds are required. Examples of such applications include conveyor systems, precision machinery, and robotics. The low speed brushless motor offers enhanced accuracy and reduced noise, making it suitable for tasks that demand finer control and quieter operation.
A 3 phase brushless motor controller is an essential component that enables the operation of brushless motors. This type of controller is designed to provide the necessary control signals and power regulation for 3 phase brushless motor controller. It facilitates the commutation process and ensures smooth rotation and precise control over motor speed and torque. The 3 phase brushless motor controller is widely employed in various industries, including industrial automation, electric vehicles, and HVAC systems.
Electrical Specifications
| Motor Model | 32RLSE241240 | 32RLSE241840 | 32RLSE242540 |
| Number of Phase | 3 | ||
| Number of Poles | 8 | ||
| Rated Voltage (VDC) | 24 | ||
| Rated Speed (Rpm) | 4000 | ||
| Rated Torque (N.m) | 0.03 | 0.045 | 0.06 |
| Rated Power (W) | 12.5 | 18.8 | 25 |
| Rated Current (A) | 0.7 | 0.9 | 1.3 |
| Peak Current (A) | 2.1 | 2.7 | 3.9 |
| Peak Torque (N.M) | 0.09 | 0.13 | 0.18 |
| Rotor Inertia (kg.cm²) | 0.01 | 0.02 | 0.03 |
| Torque Constant (N.m/A) | 0.04 | 0.04 | 0.04 |
| Torque Constant (V/krpm) | 4.48 | 5.23 | 4.18 |
| Line-Line Resistance (Ω) | 1.9 | 2.5 | 3.4 |
| Line-Line Inductance (mH) | 0.9 | 1.1 | 1.3 |
| Length (mm) | 56 | 66 | 76 |
| Weight (kg) | 0.22 | 0.38 | 0.55 |
Wiring Diagram

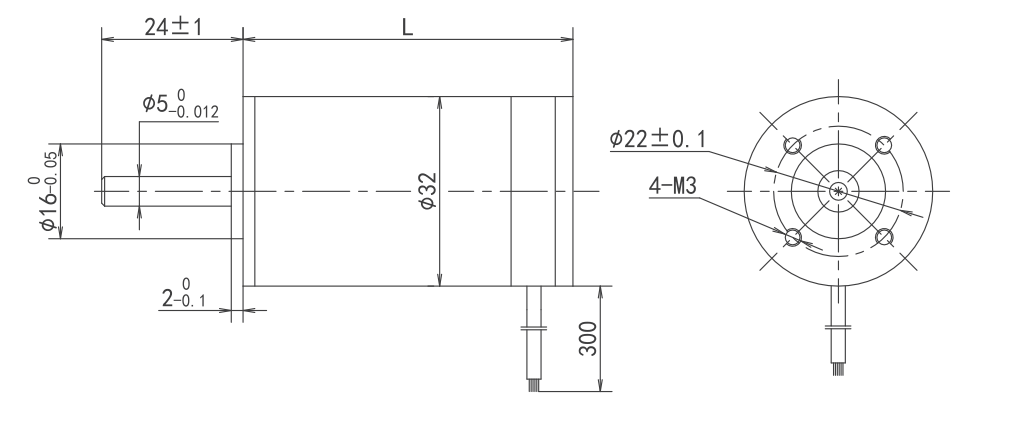

Dimensions(Unit: mm)
