Product Description
The 36RLSE series brushless motor adopts modern brushless technology, which improves the overall performance and lifespan of the motor and reduces maintenance problems caused by brush wear. Brushless motors are electronically controlled to eliminate mechanical wear, providing smoother operation and higher operational efficiency. In addition, the built-in high-precision sensors ensure precise speed and position feedback, making the motor particularly suitable for high-precision automation control systems such as small robots, automated assembly lines, and precision mechanical equipment. These characteristics make the 36RLSE series motors an ideal choice for applications that require reliable, efficient, and precise control.
The Round Standard Brushless Motor is a versatile motor type widely used in various applications. Within this category, we can explore the features of a BLDC high torque motor, a 48 volt brushless motor controller, and a programmable brushless motor controller, all of which contribute to the capabilities and flexibility of brushless motor systems.
The BLDC high torque motor is specifically designed to deliver exceptional torque output while maintaining the advantages of brushless motor technology. These motors are commonly used in applications that require high starting torque and heavy load handling, such as industrial machinery, robotics, and electric vehicles.
To control the operation of a 48 volt brushless motor, a dedicated brushless motor controller is essential. The 48 volt brushless motor controller acts as the interface between the motor and the power supply, regulating the power input and providing precise control over motor speed, torque, and direction.
A programmable brushless motor controller offers enhanced flexibility and customization options. These controllers allow users to adjust and program various motor parameters, such as speed, acceleration, and control modes, to meet specific application requirements. Programmable brushless motor controllers are widely used in applications where precise control and adaptability are critical, such as robotics, CNC machines, and automation systems. They enable users to optimize motor performance and tailor it to their unique needs.
Electrical Specifications
| Motor Model | 36RLSE241640 | 36RLSE242540 | 36RLSE243340 |
| Number of Phase | 3 | ||
| Number of Poles | 8 | ||
| Rated Voltage (VDC) | 24 | ||
| Rated Speed (Rpm) | 4000 | ||
| Rated Torque (N.m) | 0.04 | 0.06 | 0.08 |
| Rated Power (W) | 16.7 | 25 | 33.5 |
| Rated Current (A) | 0.8 | 1.25 | 1.7 |
| Peak Current (A) | 2.4 | 3.75 | 5.2 |
| Peak Torque (N.M) | 0.12 | 0.18 | 0.24 |
| Rotor Inertia (kg.cm²) | 0.02 | 0.02 | 0.03 |
| Torque Constant (N.m/A) | 0.05 | 0.05 | 0.05 |
| Torque Constant (V/krpm) | 4.5 | 4.6 | 4.5 |
| Line-Line Resistance (Ω) | 2.5 | 3.1 | 3.4 |
| Line-Line Inductance (mH) | 1.1 | 1.2 | 1.3 |
| Length (mm) | 54 | 64 | 74 |
| Weight (kg) | 0.34 | 0.5 | 0.66 |
Wiring Diagram

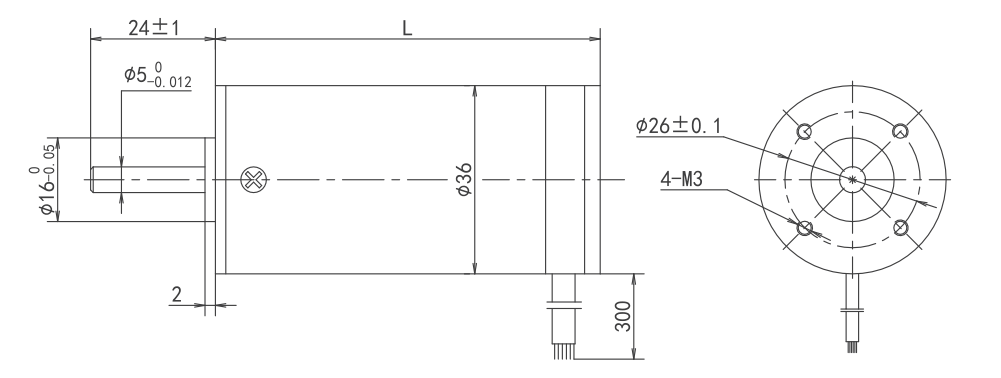

Dimensions(Unit: mm)
