Product Description
The 42BSSE series motor adopts modern brushless technology, which not only improves the durability and operational efficiency of the motor, but also greatly reduces maintenance requirements. The internally integrated high-precision sensors enable the motor to accurately control speed and position, making it ideal for use in automated production, precision mechanical operations, and other high-tech environments that require high-performance power output.
In addition, the motor series has lower noise and thermal output due to its brushless design, making it very suitable for office or medical environments. With its high reliability and excellent performance parameters, the 42BSSE series motors provide an ideal choice for applications seeking efficient and durable solutions.
The Round Standard Brushless Motor is a versatile motor type widely recognized for its reliability and adaptability in various applications. Within this category, we can explore the features of a low speed BLDC motor, a mini BLDC motor, and an outrunner BLDC motor, all of which contribute to the diverse range of options available.
A low speed BLDC motor is specifically designed to operate at lower rotational speeds while maintaining precise control and efficiency. These motors are commonly used in applications that require slow and steady operation, such as conveyor systems, robotic arms, and precision machinery. The low speed BLDC motor offers enhanced accuracy, reduced noise, and improved energy efficiency, making it suitable for tasks that demand fine control at lower speeds.
The mini BLDC motor is characterized by its compact size and lightweight design. These motors are often used in portable devices, drones, and small-scale robotics, where space and weight limitations are crucial factors. Despite their small form factor, mini BLDC motors deliver reliable performance and efficient operation, making them ideal for applications that require high power density in a limited space.
An outrunner BLDC motor is known for its unique design, where the rotor surrounds the stator. This configuration provides several advantages, including increased torque output and improved cooling efficiency. Outrunner BLDC motors are commonly used in electric scooters, electric skateboards, and electric bicycles, where high torque and durability are essential. Their design allows for better heat dissipation, resulting in improved performance and longer motor life.
Electrical Specifications
| Motor Model | 42BSSE242830 | 42BSSE245630 | 42BSSE248430 |
| Number of Phase | 3 | ||
| Number of Poles | 8 | ||
| Rated Voltage (VDC) | 24 | ||
| Rated Speed (Rpm) | 3000 | ||
| Rated Torque (N.m) | 0.09 | 0.18 | 0.27 |
| Rated Power (W) | 28 | 56 | 84 |
| Rated Current (A) | 1.7 | 3.4 | 5.4 |
| Peak Current (A) | 5.1 | 10.2 | 16 |
| Peak Torque (N.M) | 0.27 | 0.54 | 0.81 |
| Rotor Inertia (kg.cm²) | 0.25 | 0.35 | 0.45 |
| Torque Constant (N.m/A) | 0.05 | 0.05 | 0.05 |
| Torque Constant (V/krpm) | 5.23 | 5.23 | 5.23 |
| Line-Line Resistance (Ω) | 6 | 4 | 3 |
| Line-Line Inductance (mH) | 4 | 3 | 2 |
| Length (mm) | 52 | 72 | 92 |
| Weight (kg) | 0.28 | 0.48 | 0.68 |
Wiring Diagram

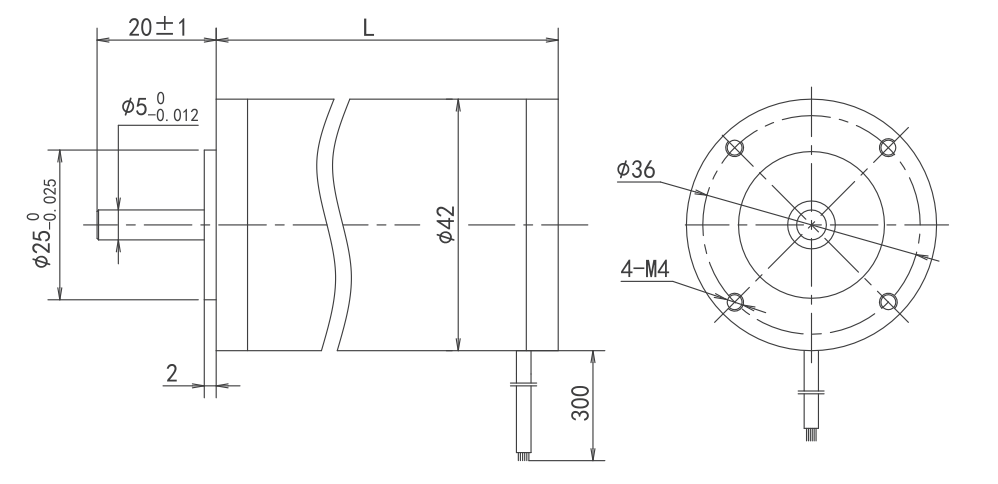

Dimensions(Unit: mm)
