Product Description
The brushless design of this motor significantly improves the durability and reliability of performance, reducing maintenance needs caused by wear and tear. The integration of high-precision sensors has improved their application accuracy in automation control systems, achieving efficient power and control synchronization. The 57WSSF series motors are highly suitable for advanced manufacturing and automation technology fields that require precise power management due to their powerful torque and adjustable flexibility, such as robotic arms, precision positioning systems, and other applications that require stability and high response speed.
The 48V BLDC controller is an essential component in the operation of a 48 volt brushless DC motor. It acts as the interface between the motor and the power supply, providing control signals and power regulation for efficient and precise motor operation. The 48V BLDC controller is designed specifically for 48-volt applications, ensuring compatibility and optimized performance.
Similarly, the 48V motor controller is specifically designed to control the operation of a motor with a 48-volt power supply. It regulates the power input, provides control signals, and ensures smooth and reliable motor operation. The 48V motor controller is commonly used in various applications, including electric vehicles, industrial machinery, and renewable energy systems, where the higher voltage rating is required to achieve the desired performance.
A high torque BLDC motor is designed to deliver exceptional torque output, making it suitable for applications that demand high starting torque or heavy load handling. These motors are commonly used in robotics, automation, electric vehicles, and other industrial applications.
Electrical Specifications
| Motor Model | 57WSSF489040 | 57WSSF481840 | 57WSSF482740 |
| Number of Phase | 3 | ||
| Number of Poles | 4 | ||
| Rated Voltage (VDC) | 48 | ||
| Rated Speed (Rpm) | 4000 | ||
| Rated Torque (N.m) | 0.22 | 0.44 | 0.66 |
| Rated Power (W) | 92 | 184 | 276 |
| Rated Current (A) | 2.5 | 5.1 | 7.6 |
| Peak Current (A) | 7.7 | 15.3 | 22.8 |
| Peak Torque (N.M) | 0.66 | 1.32 | 1.98 |
| Rotor Inertia (kg.cm²) | 1.19 | 1.73 | 1.73 |
| Torque Constant (N.m/A) | 0.08 | 0.08 | 0.08 |
| Torque Constant (V/krpm) | 9.2 | 9.2 | 9.2 |
| Line-Line Resistance (Ω) | 0.75 | 0.55 | 0.41 |
| Line-Line Inductance (mH) | 2.2 | 2.1 | 1.1 |
| Length (mm) | 55 | 75 | 95 |
| Weight (kg) | 0.72 | 0.95 | 1.2 |
Wiring Diagram

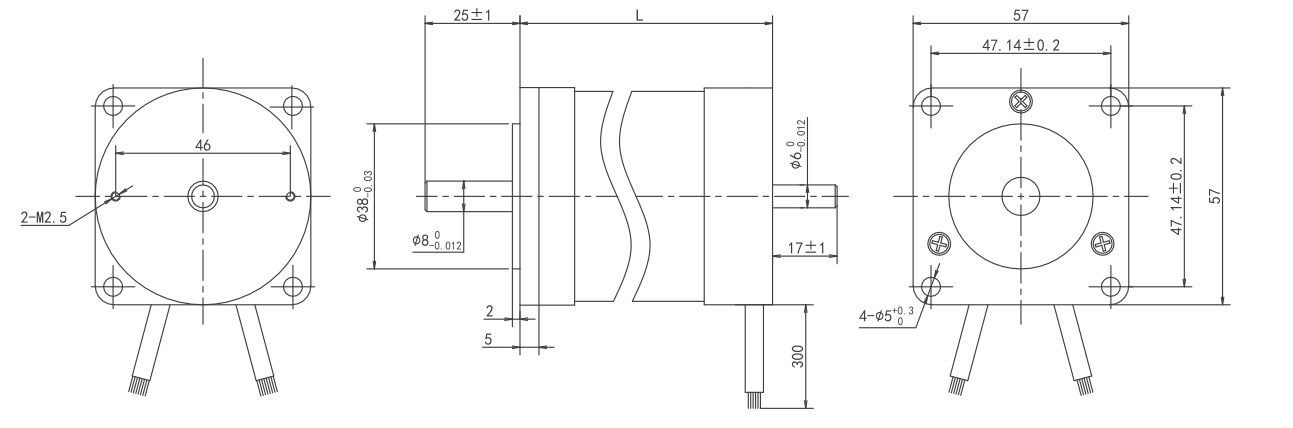

Dimensions(Unit: mm)
