Product Description
The brushless technology of the 62BSTE series motor reduces maintenance requirements and extends motor life. Due to the absence of friction caused by brushes and commutators, the motor operates more smoothly and cleanly. The built-in precise control sensor ensures high-precision speed and position monitoring, making the motor perform well in performing precise tasks.
These characteristics make the 62BSTE series motors an ideal choice for seeking durable, efficient, and reliable electric solutions, especially in the fields of industrial automation, precision machining, and high-end equipment manufacturing.
The 3 phase BLDC motor controller is a key component in driving and controlling 3 phase brushless DC motors. It provides the necessary control signals to energize the motor's windings in a synchronized manner, enabling smooth and efficient motor operation. The 3-phase BLDC motor controller typically incorporates advanced control algorithms to regulate motor speed, torque, and direction. It is widely used in various applications such as industrial automation, electric vehicles, and HVAC systems.
The intelligent brushless motor controller specifically refers to a controller that incorporates advanced features and capabilities beyond basic motor control. It typically includes additional functionalities such as communication interfaces (e.g., CAN bus, Ethernet), sensor integration (e.g., encoders, hall sensors), and advanced control algorithms (e.g., field-oriented control). The intelligent brushless motor controller 48v offers enhanced flexibility, real-time monitoring, and communication capabilities, making it suitable for sophisticated applications that require advanced control and system integration.
A sensorless brushless motor controller is designed to operate a brushless motor without the need for additional position or speed sensors. Instead, it utilizes the back electromotive force (EMF) generated by the motor's windings to estimate the rotor position and commutation timing. By eliminating the need for sensors, the sensorless brushless motor controller simplifies the motor system, reduces costs, and enhances reliability.
Electrical Specifications
| Motor Model | 62BSTE487830 | 62BSTE481130 | 62BSTE481530 | 62BSTE481930 | 62BSTE482330 |
| Number of Phase | 3 | ||||
| Number of Poles | 8 | ||||
| Rated Voltage (VDC/VAC) | 48 | ||||
| Rated Speed (Rpm) | 3000 | ||||
| Rated Torque (N.m) | 0.25 | 0.37 | 0.5 | 0.62 | 0.75 |
| Rated Power (W) | 78 | 118 | 156 | 195 | 235 |
| Rated Current (A) | 2.2 | 3.3 | 4.4 | 5.5 | 6.6 |
| Peak Current (A) | 6.6 | 9.9 | 13.2 | 16.5 | 19.8 |
| Peak Torque (N.M) | 0.75 | 1.11 | 1.5 | 1.86 | 2.25 |
| Rotor Inertia (kg.cm²) | 0.6 | 0.7 | 0.8 | 0.9 | 1 |
| Torque Constant (N.m/A) | 0.11 | 0.11 | 0.11 | 0.11 | 0.11 |
| Torque Constant (V/krpm) | 10.5 | 10.5 | 10.5 | 10.5 | 10.5 |
| Line-Line Resistance (Ω) | 1.8 | 1.5 | 1.2 | 0.9 | 0.6 |
| Line-Line Inductance (mH) | 1.5 | 1.3 | 1 | 0.7 | 0.65 |
| Length (mm) | 61 | 71 | 81 | 91 | 101 |
| Weight (kg) | 0.72 | 0.88 | 1.04 | 1.2 | 1.37 |
Wiring Diagram

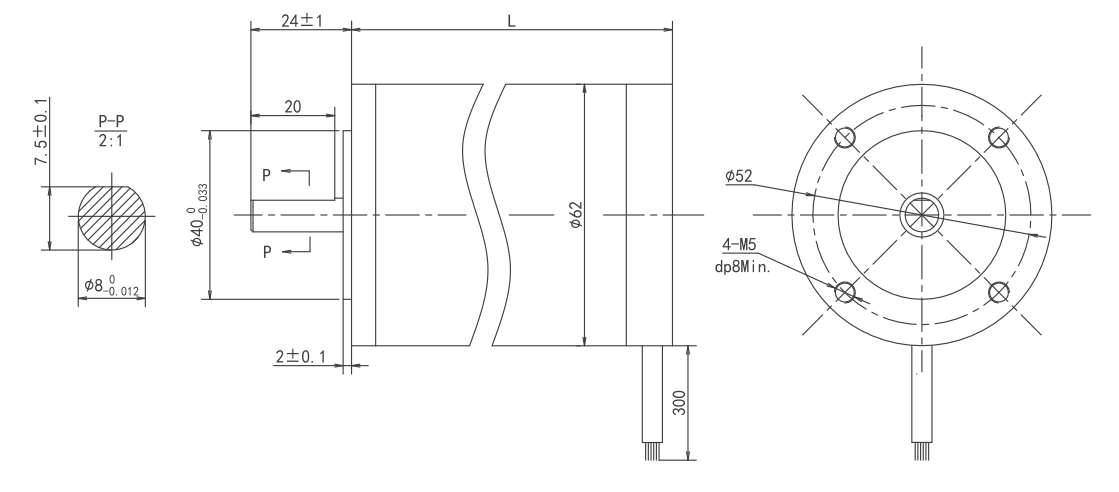

Dimensions(Unit: mm)
