Product Description
The 32PSR-14WLSE series planetary gearbox square DC brushless motor is a high-performance power solution, with dimensions of 35mm and lengths ranging from 49mm to 69mm. It is known for its compact design and reliable performance, suitable for various limited space application scenarios. The motor adopts a rated voltage of 24VDC, providing a rated torque of 0.04 to 0.08Nm and a rated power of 16 to 32W, with a speed of 4000 rpm. Combining the advantages of planetary gearboxes and brushless motors, this product features high efficiency and low noise, making it an ideal choice for precision instruments, automation systems, and medical equipment.
The Square Gearbox Brushless Motor is a remarkable engineering feat, seamlessly blending the power of brushless technology with the precision of a compact gearbox. At the heart of this versatile solution lies the 35mm brushless motor, a compact and high-performance unit that delivers exceptional torque and speed.
The 35mm brushless motor is compact dimensions make it an ideal choice for space-constrained applications, while its brushless design ensures long-lasting operation and reduced maintenance requirements. This compact powerhouse is perfectly suited for applications that demand precise control and efficient power delivery.
Complementing the 35mm brushless motor is the brushless dc motor geared 24v, a high-voltage variant that expands the capabilities of the Square Gearbox Brushless Motor. The brushless dc motor geared 24v's ability to operate at 24 volts unlocks increased power and enhanced performance, catering to applications that require greater horsepower and torque.
Rounding out the trio of key components is the micro brushless motor, a diminutive yet mighty unit that showcases the versatility of the Square Gearbox Brushless Motor. The micro brushless motor's compact size and high power density make it an ideal choice for applications where space is at a premium, without compromising on performance.
Electrical Specifications
| Motor Model | 14WLSE241640 | 14WLSE242540 | 14WLSE243340 |
| Rated Voltage(VDC) | 24 | ||
| Rated Speed(Rpm) | 4000 | ||
| Rated Torque(N.m) | 0.04 | 0.06 | 0.08 |
| Rated Power(W) | 16.7 | 25 | 33.5 |
| Length(mm) | 49 | 59 | 69 |
Gearbox Electrical Specifications
| Reducer Series | 1 | 2 | 3 |
| Transmission efficiency | 90% | 81% | 73% |
| Max radial load | 35N | 35N | 35N |
| Max axial load | 20N | 20N | 20N |
| Transmission torque | 0.3N.m | 1.2N.m | 2.5N.m |
| Reduction Ratio | 3.7,5.18,6.75 | 14,19,25,27,35,45 | 51,71,93,100,139,181,236,307 |
| Length(mm) | 25.6 | 34 | 42 |

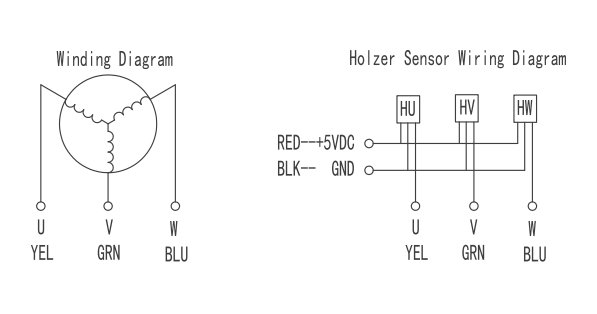

Wiring Diagram

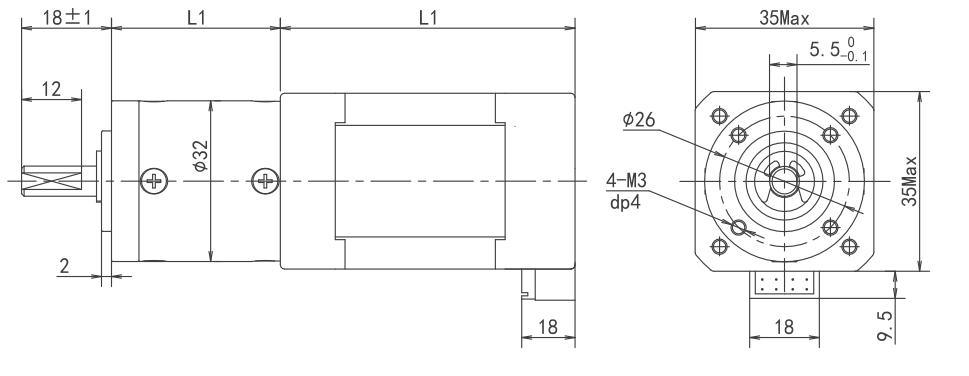

Dimensions(Unit: mm)
