Product Description
The 42PSR-17WSTE series planetary gearbox square DC brushless motor is an efficient and stable power solution that provides reliable driving support for industrial and commercial applications.
The Square Gearbox Brushless Motor is an engineering marvel, seamlessly combining high-performance brushless technology with a robust gearbox system.
The 42mm brushless motor's compact dimensions make it an ideal choice for applications where space is at a premium, without compromising on performance. Its brushless design ensures long-lasting operation and reduced maintenance requirements, making it a reliable choice for a wide range of industries.
Complementing the 42mm brushless motor is the brushless dc motor 24v 65 watt, a high-voltage variant that expands the capabilities of the Square Gearbox Brushless Motor. The brushless dc motor 24v 65 watt's ability to operate at 24 volts and deliver 65 watts of power unlocks increased performance and efficiency, catering to applications that demand greater horsepower and torque.
Rounding out the trio of key components is the bldc drone motor, a specialized unit designed for the demanding requirements of drone and unmanned aerial vehicle (UAV) applications. The bldc drone motor's lightweight construction, high power density, and precise control make it an ideal choice for drone and UAV enthusiasts and professionals alike.
Electrical Specifications
| Motor Model | 17WSTE243030 | 17WSTE246030 | 17WSTE249030 |
| Rated Voltage(VDC) | 24 | ||
| Rated Speed(Rpm) | 3000 | ||
| Rated Torque(N.m) | 0.1 | 0.2 | 0.3 |
| Rated Power(W) | 31 | 63 | 94 |
| Length(mm) | 47 | 67 | 87 |
Gearbox Electrical Specifications
| Reducer Series | 1 | 2 |
| Transmission efficiency | 90% | 81% |
| Max radial load | 200N | 200N |
| Max axial load | 100N | 100N |
| Transmission torque | 6N.m | 12N.m |
| Reduction Ratio | 5,10 | 20,25,35,40,45,50,100 |
| Length(mm) | 33.5 | 43 |
Wiring Diagram

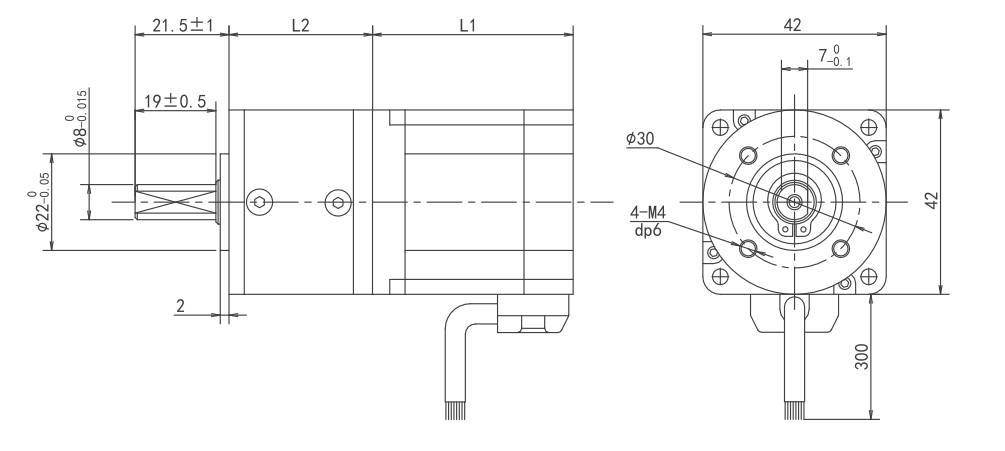

Dimensions(Unit: mm)
