Product Description
The 57PGF-23WSTE series planetary gearbox square brushless DC motor is a high-performance driving solution suitable for various industrial and commercial application scenarios.
The Square Gearbox Brushless Motor is a groundbreaking engineering solution, seamlessly integrating high-performance brushless technology with a robust gearbox system. At the heart of this versatile system lies the mini drone brushless motor, a compact and lightweight unit designed to meet the demanding requirements of drone and unmanned aerial vehicle (UAV) applications.
The mini drone brushless motor's compact size and high power density make it an ideal choice for drone and UAV enthusiasts and professionals. Its brushless design ensures long-lasting operation and reduced maintenance, allowing you to push the boundaries of your aerial projects.
Complementing the mini drone brushless motor is the low rpm brushless motor, a specialized unit designed to deliver exceptional torque and precision at lower rotational speeds. The low rpm brushless motor's ability to operate efficiently at lower RPMs opens up a world of possibilities for applications that require high-torque, low-speed performance.
Tying these components together is the 3 phase brushless dc motor controller, a sophisticated electronic system that provides precise and responsive control. The 3 phase brushless dc motor controller's advanced algorithms and feedback mechanisms ensure seamless operation, allowing users to harness the full potential of the Square Gearbox Brushless Motor.
Electrical Specifications
| Motor Model | 23WSTE486030 | 23WSTE481230 | 23WSTE481830 |
| Rated Voltage(VDC) | 48 | ||
| Rated Speed(Rpm) | 3000 | ||
| Rated Torque(N.m) | 0.2 | 0.4 | 0.6 |
| Rated Power(W) | 60 | 120 | 180 |
| Length(mm) | 58 | 78 | 98 |
Gearbox Electrical Specifications
| Reducer Series | 1 | 2 |
| Transmission efficiency | 95% | 90% |
| Max radial load | 580N | 580N |
| Max axial load | 340N | 340N |
| Transmission torque | 25N.m | 40N.m |
| Reduction Ratio | 5,10 | 15,20,25,30,40,50 |
| Length(mm) | 55 | 71 |
Wiring Diagram

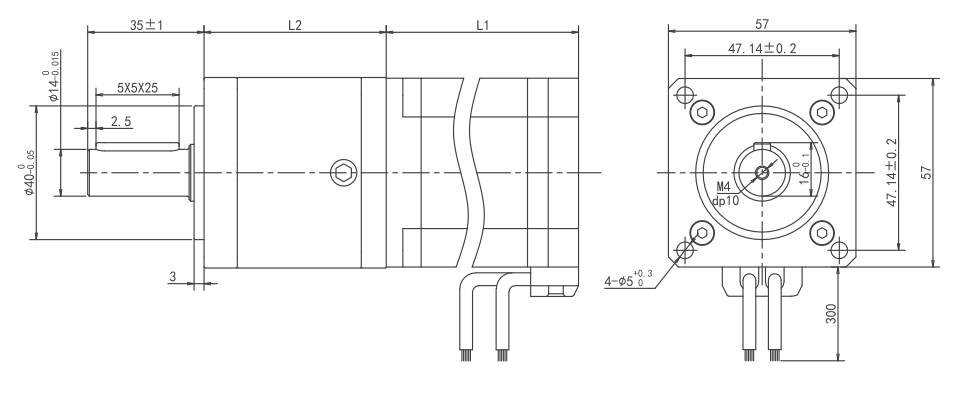

Dimensions(Unit: mm)
