Product Description
The 80PGR-32BSTE series planetary gearbox square brushless DC motor is a high-performance power solution suitable for various industrial automation and mechanical applications.
The Square Gearbox Brushless Motor is a true marvel of engineering, seamlessly combining high-performance brushless technology with a robust gearbox system. At the heart of this innovative solution lies the 80mm brushless motor, a powerhouse that delivers exceptional torque and speed.
The 80mm brushless motor's large diameter and advanced design provide unparalleled power output, making it a go-to choice for applications that demand raw power and efficiency. Its brushless construction eliminates the need for traditional brushes, ensuring long-lasting operation and reduced maintenance requirements.
Complementing the 80mm brushless motor is the brushless 48v motor, a versatile and high-voltage variant that expands the possibilities of the Square Gearbox Brushless Motor. The brushless 48v motor's ability to operate at higher voltages unlocks increased power delivery and improved performance, catering to applications that require greater horsepower and torque.
Integrating the 80mm brushless motor and brushless 48v motor is the 3 phase bldc motor controller, a sophisticated electronic system that provides precise and responsive control. The 3 phase bldc motor controller's advanced algorithms and feedback mechanisms ensure seamless operation, allowing users to harness the full potential of the Square Gearbox Brushless Motor.
Electrical Specifications
| Motor Model | 32BSTE481830 | 32BSTE482530 |
| Rated Voltage(VDC) | 48 | |
| Rated Speed(Rpm) | 3000 | |
| Rated Torque(N.m) | 0.6 | 0.8 |
| Rated Power(W) | 188 | 250 |
| Length(mm) | 99 | 109 |
Gearbox Electrical Specifications
| Reducer Series | 1 | 2 |
| Transmission efficiency | 95% | 90% |
| Max radial load | 1000N | 1000N |
| Max axial load | 500N | 500N |
| Transmission torque | 50N.m | 80N.m |
| Reduction Ratio | 5,10 | 15,20,25,30,40,50 |
| Length(mm) | 74 | 93 |
Wiring Diagram

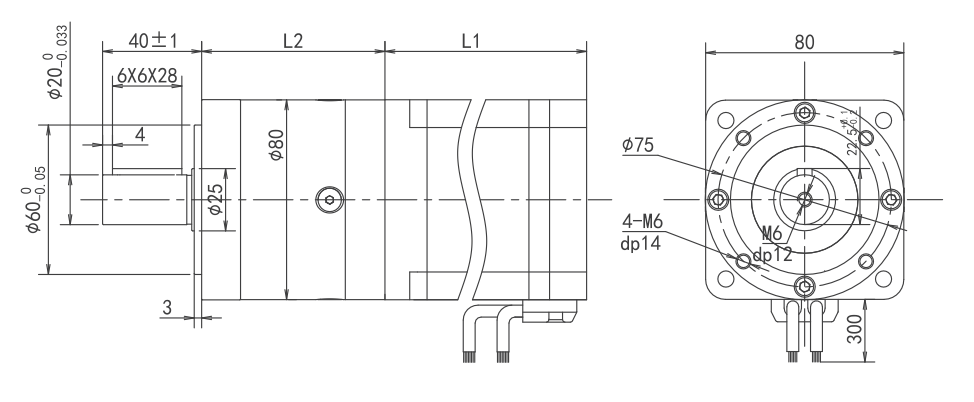

Dimensions(Unit: mm)
