Product Description
The 86PGR-34WSTE series planetary gearbox square brushless DC motor is a high-performance power drive solution designed specifically for industrial applications.
The Square Gearbox Brushless Motor is a groundbreaking engineering solution that seamlessly integrates high-performance brushless technology with a robust gearbox system. At the heart of this versatile system lies the brushless dc motor 3 phase, a sophisticated and efficient unit that delivers exceptional power and control.
The brushless dc motor 3 phase's advanced three-phase design provides precise control over speed, torque, and efficiency, making it an ideal choice for a wide range of applications. Its brushless construction ensures long-lasting operation and reduced maintenance, making it a reliable and cost-effective solution.
Complementing the brushless dc motor 3 phase is the low rpm bldc motor, a specialized unit designed to deliver exceptional torque and precision at lower rotational speeds. The low rpm bldc motor's ability to operate efficiently at lower RPMs opens up a world of possibilities for applications that require high-torque, low-speed performance, such as industrial machinery and robotics.
Rounding out the trio of key components is the silent brushless motor, a cutting-edge solution that prioritizes noise reduction without compromising on performance. The silent brushless motor's advanced design and noise-dampening features make it an excellent choice for applications where quiet operation is of utmost importance, such as medical equipment, office automation, and home appliances.
Electrical Specifications
| Motor Model | 34WSTE482230 | 34WSTE483130 |
| Rated Voltage(VDC) | 48 | |
| Rated Speed(Rpm) | 3000 | |
| Rated Torque(N.m) | 0.7 | 1 |
| Rated Power(W) | 220 | 310 |
| Length(mm) | 66.5 | 80.5 |
Gearbox Electrical Specifications
| Reducer Series | 1 | 2 |
| Transmission efficiency | 95% | 90% |
| Max radial load | 1000N | 1000N |
| Max axial load | 500N | 500N |
| Transmission torque | 50N.m | 80N.m |
| Reduction Ratio | 5,10 | 15,20,25,30,40,50 |
| Length(mm) | 74 | 93 |
Wiring Diagram

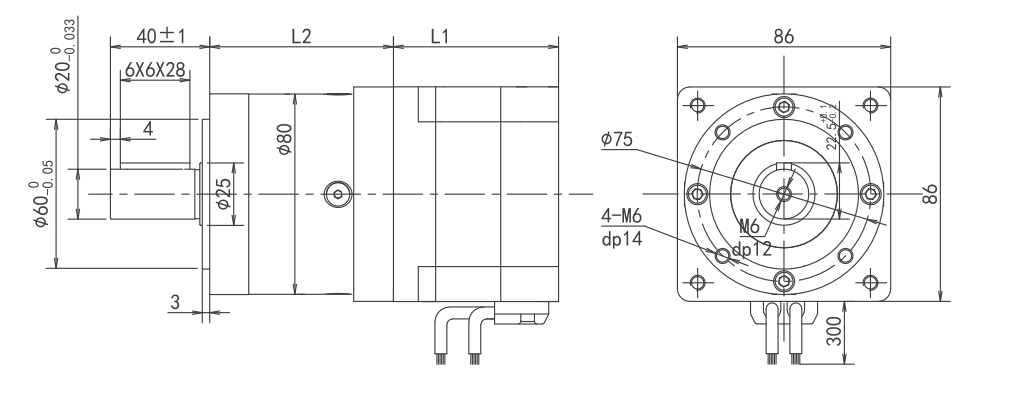

Dimensions(Unit: mm)
