Product Description
This 28PSR-28RLSE Series Planetary Gearbox Circular DC Brushless Motor of products adopts a planetary gearbox design, combined with efficient DC brushless motor technology, with high precision, high rigidity, and high load capacity.
The Round Gearbox Brushless Motor is a remarkable innovation that combines the power of brushless technology with the precision of a robust gearbox system. Within this motor system, you'll find the exceptional performance of the bldc planetary gear motor, the reliable functionality of the dc gear motor 24v, and the enhanced efficiency of the geared brushless motor.
The bldc planetary gear motor within the Round Gearbox Brushless Motor offers unparalleled power, thanks to its brushless design and integrated planetary gearbox. The bldc planetary gear motor delivers exceptional torque, precision, and compactness, making it an ideal choice for applications that demand both strength and accuracy.
The dc gear motor 24v, another key component of the Round Gearbox Brushless Motor, harnesses the power of a traditional brushed dc motor combined with a gearbox. With a 24-volt power supply, the dc gear motor 24v provides increased torque and performance, making it a reliable solution for various applications, such as automotive accessories, home appliances, and electric vehicles.
Completing the trio of remarkable components is the geared brushless motor, which combines the advantages of brushless motor technology with the torque multiplication of a gearbox. This configuration offers enhanced efficiency, reduced maintenance, and precise control, making the geared brushless motor an excellent choice for applications in robotics, aerospace, and renewable energy systems.
Electrical Specifications
| Motor Model | 28RLSE240840 | 28RLSE241240 | 28RLSE241640 |
| Rated Voltage(VDC) | 24 | ||
| Rated Speed(Rpm) | 4000 | ||
| Rated Torque(N.m) | 0.02 | 0.03 | 0.04 |
| Rated Power(W) | 8 | 12.5 | 16.7 |
| Length(mm) | 49 | 59 | 69 |
Gearbox Electrical Specifications
| Reducer Series | 1 | 2 | 3 |
| Transmission efficiency | 90% | 81% | 73% |
| Max radial load | 35N | 35N | 35N |
| Max axial load | 20N | 20N | 20N |
| Transmission torque | 0.3N.m | 1.2N.m | 2.5N.m |
| Reduction Ratio | 3.7,5.18,6.75 | 14,19,25,27,35,45 | 51,71,93,100,139,181,236,307 |
| Length(mm) | 25.6 | 34 | 42 |
Wiring Diagram

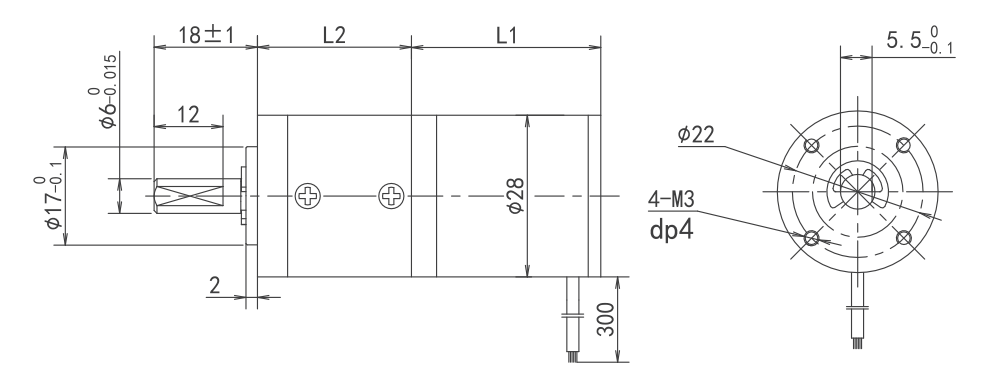

Dimensions(Unit: mm)
