Voltage
12V
Rated Current
40A
Contact Rating
40A/14VDC 30A/14VDC
Pins
4-pin 5-pin
Maximum Operating Current
40A
Maximum Operating Voltage
27VDC
Rated Load (Resistive Load)
1A: 40A at 13.5VDC, 20A at 27VDC
1C: NC/NC 40A/30A at 13.5VDC, 20A/15A at 27VDC
Insulation Resistance
100MΩ
Dielectric Strength (Coil and Contacts)
500V AC/m

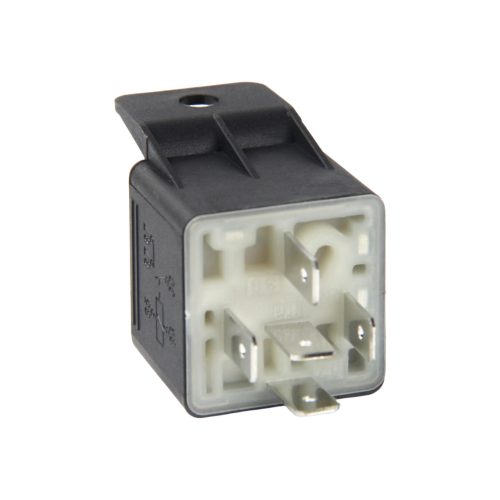

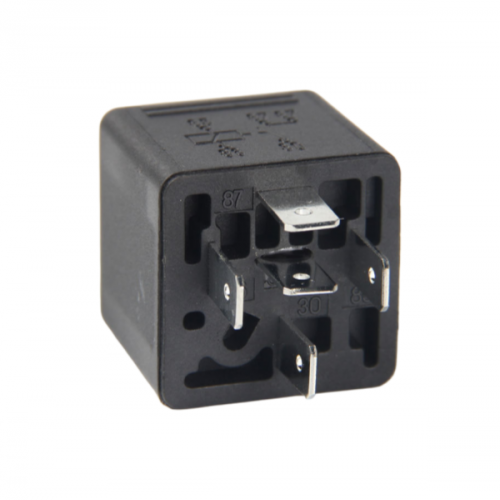

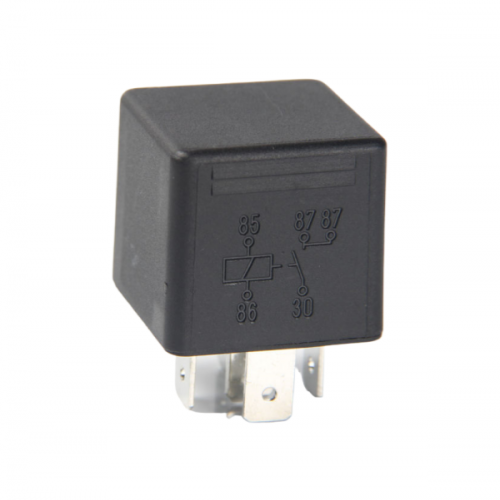

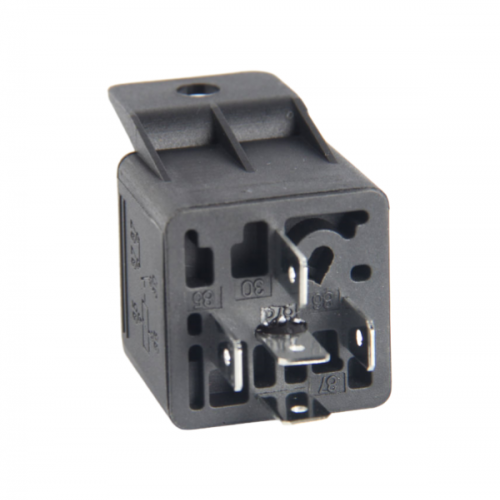

12V 5-Pin 30A Automotive Switching Relay
US$ 7.99 / 1 Piece
1Piece Minimum order
About this item
- Specifications: 80A 120A 220V
- Type: Automotive Relay
- High efficiency, exceptional adaptability, durable
- Suitable for automotive applications
- One-year warranty
Jinhua Xiaoxibian Technology Co., Ltd
1 years
China
Avg Response Time: ≤24 h
Business Type: ATV start motor
