Maximum continuous current: 40A
Operating temperature up to 85°C
Coil Voltage Type: DC
Coil Operating Voltage: 24
Contact Configuration: Two Sets of Normally Open
Number of Contacts: Single Contact
Terminal Configuration: PCB Mount and Bolt Mount
Mounting Method: PCB and Bolt Mounting
Package Type: Solder Mask Type
Coil Power: Standard Type
Coil Characteristic: Monostable
Load Voltage: 250
Rated Coil Power Approx. 4.8W
Dielectric Withstand Voltage 4000VAC 1min
Actuation Time (Unit: ms) ≤30
Release Time (Unit: ms) ≤5
Maximum Rated Switching Current (AC) 40
Temperature Range -40°C to 85°C

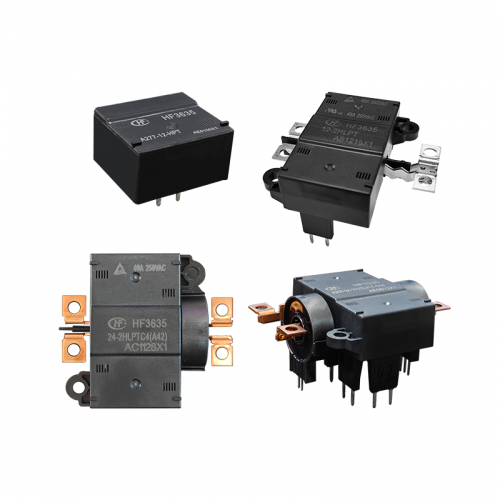

HF3635/A250-24-2HLPT Automotive Relay 24VDC
US$ 25.99 / 1 Piece
1Piece Minimum order
Type:
Relay
Category:
Automotive
Brand:
Xiaoxibian
About this item
- This HF3635/A250-24-2HLPT 24VDC automotive relay is precision-engineered to match OEM specifications, offering seamless plug-and-play compatibility with most 24V heavy-duty trucks, commercial vehicles, and aftermarket electrical upgrade projects.
- Manufactured with high-conductivity copper core contacts and a flame-retardant, impact-resistant housing, this relay delivers consistent performance and extended service life even in harsh, vibration-prone under-hood environments.
- This brand new, factory-tested HF3635/A250-24-2HLPT relay passes strict load capacity and durability checks to ensure it meets or exceeds original part performance standards right out of the box.
- Designed to control high-current automotive circuits including lighting systems, cooling fans, fuel pumps, and starter assemblies, this 24VDC relay reliably prevents circuit overload and protects sensitive vehicle electronics from damage.
- Each HF3635/A250-24-2HLPT automotive relay comes individually packaged in anti-static, moisture-sealed wrapping to protect internal electrical components during transit and guarantee it arrives in ready-to-install condition.
