Maximum continuous current 40A
Operating temperature up to 85°C
Coil Voltage Type DC
Coil Operating Voltage 12
Contact Configuration Two sets of normally open contacts
Number of Contacts Single contact
Terminal Configuration PCB and bolt-type
Mounting Configuration PCB and bolt mounting
Package Type Solder mask type
Coil Power Low power consumption type
Coil Characteristics Monostable
Load Voltage 250
Rated Coil Power Approx. 3.8W
Dielectric Withstand Voltage 4000VAC 1min
Actuation Time (Unit: ms) ≤30
Release Time (Unit: ms) ≤5
Maximum Rated Switching Current (AC) 40
Maximum Switching Voltage (AC) 277
Temperature Range -40 ℃ - 85 ℃

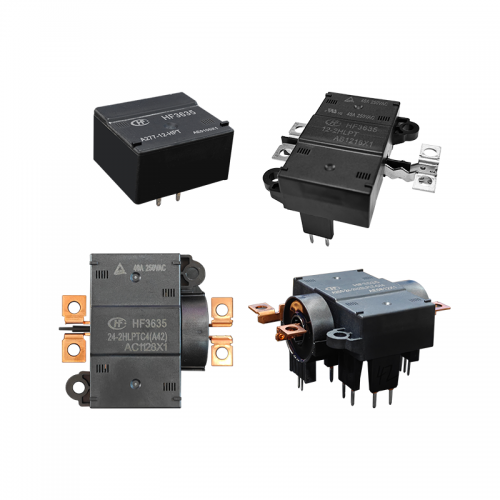

HF3635/A250-12-2HLPLT Automotive Relay Continuous Current 40A
US$ 22.99 / 1 Piece
1Piece Minimum order
Type:
Relay
Category:
Automotive
Brand:
Xiaoxibian
About this item
- This HF3635/A250-12-2HLPLT 40A automotive relay fits all 12V vehicle models requiring a standard 40A continuous current relay for circuit control, including sedans, pickup trucks, and small commercial vans.
- Constructed with high-conductivity pure copper contacts and impact-resistant, flame-retardant PC housing, this relay resists corrosion, overheating, and vibration for reliable long-term use under extreme under-hood conditions.
- This brand new, factory-calibrated HF3635/A250-12-2HLPLT relay passes 100% pre-shipment load testing to ensure it meets original equipment performance specifications right out of the package.
- Perfect for powering high-current automotive accessories including LED light bars, electric cooling fans, fuel pumps, air horn systems, and aftermarket audio power supply circuits.
- Each relay ships in an anti-static, moisture-proof individual bag with a printed quick installation guide to simplify setup and protect the component during transit and storage.
