1. Coil Voltage Type: DC
2. Coil Operating Voltage: 12
3. Contact Form: One Set Normally Open
4. Number of Contacts: Single Contact
5. Terminal Form: PCB Mount
6. Mounting Type: PCB Mount
7. Package Type: Solder Mask Type
8. Coil Power: Standard Type
9. Coil Feature: Monostable
10. Contact Material: AgSnO₂
11. Packaging Type: Tube Packaging
12. Load Voltage: 12V
13. Rated Coil Power: Approx. 0.48W
14. Dielectric Withstand Voltage: 500VAC 1min
15. Actuation Time (Unit: ms): ≤10
16. Release Time (Unit: ms): ≤10
17. Insulation Resistance (Unit: MΩ): 100
18. Maximum Rated Switching Current (DC): 30
19. Maximum Switching Voltage (DC): 16
20. Temperature Range: -40°C to 125°C
21. Mechanical Durability (Unit: Cycles): 10,000,000
22. Electrical endurance (units): 100,000
23. Application fields: Window defogging #Headlight control #Seat heating control #Power window control, etc.
24. Weight (units: g): Approx. 5.0
25. Dimensions (units: mm³): 14×9.2×14

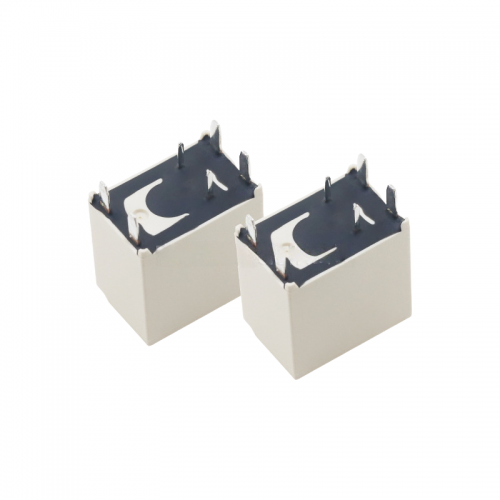

HFK7-T/12-HT Single Normally Open Automotive Relay 0.48W
US$ 11.99 / 1 Piece
1Piece Minimum order
Type:
Relay
Category:
Automotive
Brand:
Xiaoxibian
About this item
- This HFK7-T/12-HT single normally open automotive relay is universally compatible with all 12V passenger cars, light trucks, and commercial utility vehicles, matching OEM pinout and performance specs for direct drop-in replacement.
- Constructed with high-conductivity copper contacts, heat-resistant internal wiring, and flame-retardant hard plastic housing, this 0.48W relay resists under-hood heat, vibration, and moisture for long-lasting, reliable operation.
- This is a brand new, factory-calibrated HFK7-T/12-HT relay that has undergone full load and cycle testing to eliminate defects, ensuring consistent performance that meets or exceeds original equipment standards.
- Perfect for replacing faulty factory relays for lighting, ignition, and fuel pump systems, or adding custom accessories like LED light bars, auxiliary fans, and aftermarket audio systems, this normally open relay prevents circuit overload and protects sensitive electronics.
- Each individual relay comes in anti-static, tamper-proof sealed packaging with a printed pinout guide, protecting the unit from electrostatic damage during shipping and making installation quick and hassle-free for both professional mechanics and DIY enthusiasts.
