25A motor load
Ultra-compact
Changeover contact configuration
Single or dual relays available
Class H (180°C) coil insulation rating
1. Coil Voltage Type: DC
2. Coil Operating Voltage: 12V
3. Contact Configuration: Two-group changeover
4. Number of Contacts: Single contact
5. Terminal Configuration: PCB-mount
6. Mounting Type: PCB mounting
7. Package Type: Plastic encapsulated
8. Coil Power: Low operating voltage type
9. Coil Characteristic: Monostable
10. Contact Material: AgSnO₂
11. Load Voltage: 12
12. Rated Coil Power: Approx. 0.8W
13. Dielectric Withstand Voltage: 500VAC 1min
14. Actuation Time (Unit: ms): ≤10
15. Release Time (Unit: ms): ≤10
16. Insulation Resistance (Unit: MΩ): 100
17. Maximum Rated Switching Current (DC): 25
18. Maximum Switching Voltage (DC): 16
19. Temperature Range: -40°C to 85°C
20. Mechanical Durability (Unit: Cycles): 10,000,000
21. Electrical endurance (units): 100,000
22. Application fields: Automatic doors/windows, central door locks, sunroof control, seat adjustment, indicator light control, wiper control, etc.
23. Weight (units: g): Approx. 8
24. Dimensions (units: mm³): 14 × 15.4 × 13.5

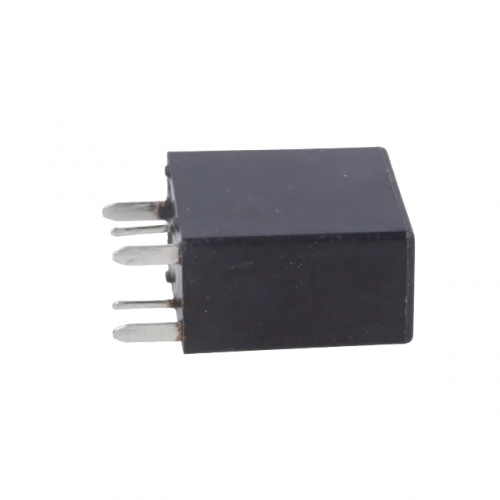

0.8W Automotive Relay HFKA/012-2ZSPT Dual-Pole Changeover
US$ 7.99 / 1 Piece
1Piece Minimum order
Type:
Relay
Category:
Automotive
Brand:
Xiaoxibian
About this item
- This 0.8W HFKA/012-2ZSPT dual-pole changeover relay is engineered to be compatible with all 12V automotive and light truck electrical systems, supporting plug-and-play installation for most stock and modified vehicle setups.
- Built with corrosion-resistant copper alloy contact pins and a flame-retardant reinforced plastic housing, this automotive relay delivers consistent conductivity and lasting durability even in high-vibration, high-temperature under-hood environments.
- This is a brand new, factory-calibrated relay that undergoes strict pre-shipment quality testing to ensure no manufacturing defects, wear, or prior use for reliable performance from first use.
- This dual-pole changeover relay is ideal for powering and switching automotive lighting, cooling fans, power door locks, alarm systems, audio upgrades, and other common vehicle electrical accessories.
- Each relay ships in individual anti-static, moisture-sealed packaging to protect internal sensitive components from static discharge, dust, and moisture damage during storage and transit.
