25A motor load
Ultra-compact
Changeover contact configuration
Single or dual relays available
Class H (180°C) coil insulation rating
1. Coil Voltage Type: DC
2. Coil Operating Voltage: 12V
3. Contact Form: Two Sets of Normally Open
4. Number of Contacts: Single Contact
5. Terminal Form: PCB Mount
6. Mounting Type: PCB Mount
7. Package Type: Plastic Encapsulated
8. Coil Power: Standard
9. Coil Characteristic: Monostable
10. Contact Material: AgSnO₂
11. Load Voltage: 12
12. Rated Coil Power: Approx. 0.64W
13. Dielectric Withstand Voltage: 500VAC 1min
14. Operating Time (Unit: ms): ≤10
15. Release Time (Unit: ms): ≤10
16. Insulation Resistance (Unit: MΩ): 100
17. Maximum Rated Switching Current (DC): 25
18. Maximum Switching Voltage (DC): 16
19. Temperature Range: -40°C to 85°C
20. Mechanical Durability (Unit: Cycles): 10,000,000
21. Electrical endurance (units): 100,000
22. Application fields: Automatic doors/windows, central door locks, sunroof control, seat adjustment, indicator light control, wiper control, etc.
23. Weight (units: g): Approx. 8
24. Dimensions (units: mm³): 14 × 15.4 × 13.5

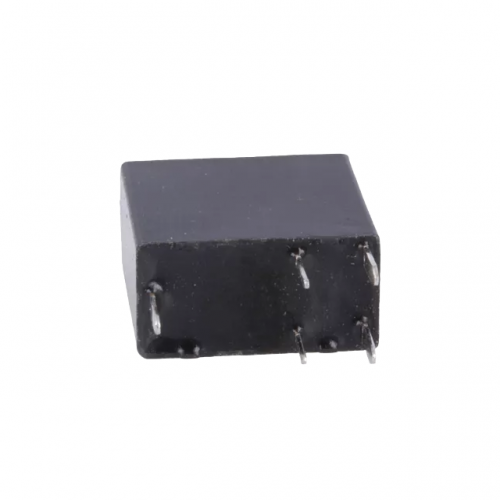

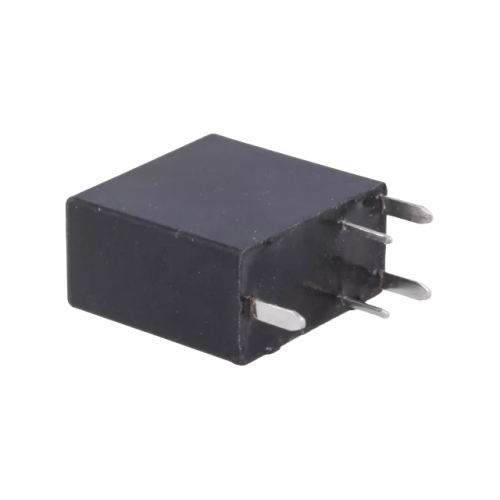

0.64W Automotive Relay HFKA/012-2HST Dual Normally Open Contacts
US$ 7.99 / 1 Piece
1Piece Minimum order
Type:
Relay
Category:
Automotive
Brand:
Xiaoxibian
About this item
- This 0.64W HFKA/012-2HST automotive relay is universally compatible with all 12V passenger vehicles, light-duty trucks, and custom automotive electrical modification setups for reliable power distribution.
- Built with high-conductivity copper alloy dual normally open contacts and a heat-resistant flame-retardant housing, this relay resists arc corrosion, under-hood vibration, and extreme temperature swings for long-lasting performance.
- This is a brand-new, factory-calibrated automotive relay that matches OEM performance standards, with no signs of prior use, damage, or manufacturing defects to guarantee consistent functionality.
- Perfect for controlling vehicle lighting circuits, electric horns, cooling fans, fuel pumps, and other low-power automotive electrical loads, this low-draw 0.64W relay delivers fast, reliable on/off response with minimal power waste.
- Each HFKA/012-2HST relay ships in individual anti-static sealed packaging to protect sensitive internal components during transit and storage, with clear part number labeling for quick inventory and installation identification.
