25A motor load
Ultra-compact
Changeover contact configuration
Single or dual relays available
Class H (180°C) coil insulation rating
1. Coil Voltage Type: DC
2. Coil Operating Voltage: 12V
3. Contact Form: Two Sets of Normally Open
4. Number of Contacts: Single Contact
5. Terminal Form: PCB Mount
6. Mounting Type: PCB Mount
7. Package Type: Plastic Encapsulated
8. Coil Power: Low Operating Voltage Type
9. Coil Characteristic: Monostable
10. Contact Material: AgSnO₂
11. Load Voltage: 12
12. Rated Coil Power: Approx. 0.8W
13. Dielectric Withstand Voltage: 500VAC 1min
14. Actuation Time (Unit: ms): ≤10
15. Release Time (Unit: ms): ≤10
16. Insulation Resistance (Unit: MΩ): 100
17. Maximum Rated Switching Current (DC): 25
18. Maximum Switching Voltage (DC): 16
19. Temperature Range: -40°C to 85°C
20. Mechanical Durability (Unit: Cycles): 10,000,000
21. Electrical endurance (units): 100,000
22. Application fields: Automatic doors/windows, central door locks, sunroof control, seat adjustment, indicator light control, wiper control, etc.
23. Weight (units: g): Approx. 8
24. Dimensions (units: mm³): 14 × 15.4 × 13.5

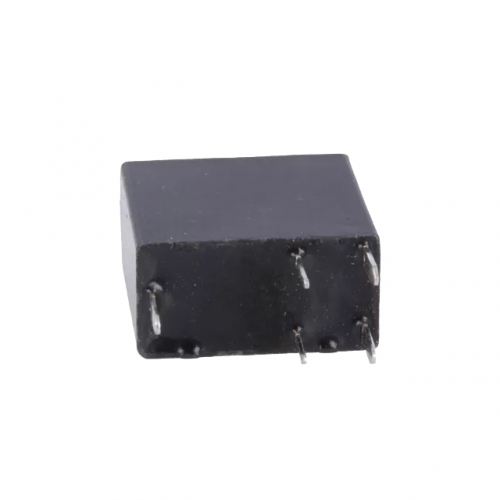

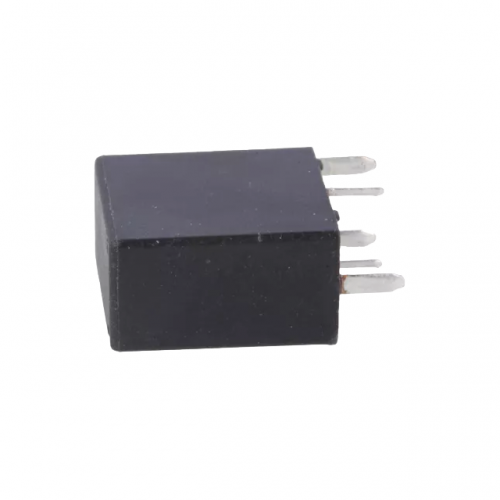

0.8W Automotive Relay HFKA/012-2HSPT Dual Normally Open Contacts
US$ 7.99 / 1 Piece
1Piece Minimum order
Type:
Relay
Category:
Automotive
Brand:
Xiaoxibian
About this item
- This 0.8W HFKA/012-2HSPT automotive relay fits all 12V passenger vehicles, light-duty trucks, and small utility equipment, matching original factory specifications for direct drop-in replacement of identical relay part numbers.
- Built with high-conductivity pure copper dual normally open contacts and heat-resistant reinforced nylon housing, this 0.8W automotive relay resists arc wear, under-hood oil and moisture, and delivers a service life of over 100,000 switching cycles.
- This brand-new, factory-tested HFKA/012-2HSPT automotive relay is free of manufacturing defects, delivers consistent 12V performance, and meets all original equipment performance benchmarks for reliable long-term use.
- Perfect for controlling automotive fog lights, power door locks, audio amplifiers, and off-road auxiliary lighting systems, this low-power 0.8W relay delivers stable current switching without excessive draw on your vehicle's electrical system.
- Each HFKA/012-2HSPT automotive relay ships in an anti-static sealed bag to prevent electrostatic damage during transit and storage, with clear printed part labeling for quick identification during installation or restocking.
