25A motor load
Ultra-compact
Changeover contact configuration
Single or dual relays available
Class H (180°C) coil insulation rating
1. Coil Voltage Type: DC
2. Coil Operating Voltage: 12V
3. Contact Form: One set changeover
4. Number of Contacts: Single contact
5. Terminal Form: PCB-mounted
6. Mounting Type: PCB mounting
7. Package Type: Plastic encapsulated
8. Coil Power: Standard
9. Coil Characteristic: Monostable
10. Contact Material: AgSnO₂
11. Load Voltage: 12
12. Rated Coil Power: Approx. 0.64W
13. Dielectric Withstand Voltage: 500VAC 1min
14. Actuation Time (Unit: ms): ≤10
15. Release Time (Unit: ms): ≤10
16. Insulation Resistance (Unit: MΩ): 100
17. Maximum Rated Switching Current (DC): 25
18. Maximum Switching Voltage (DC): 16
19. Temperature Range: -40°C to 85°C
20. Mechanical Durability (Unit: Cycles): 10,000,000
21. Electrical endurance (units): 100,000
22. Application fields: Automatic doors/windows, central door locks, sunroof control, seat adjustment, indicator light control, wiper control, etc.
23. Weight (units: g): Approx. 4
24. Dimensions (units: mm³): 14 × 7.2 × 13.5

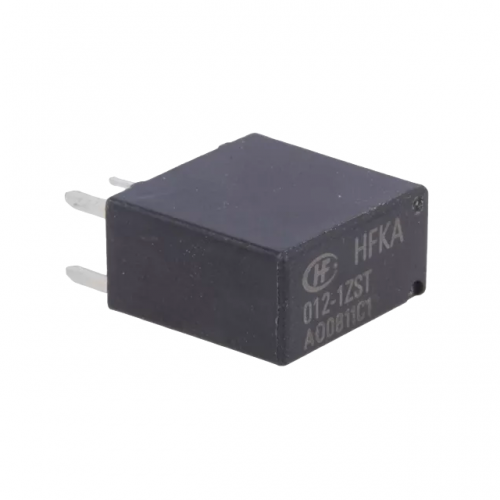

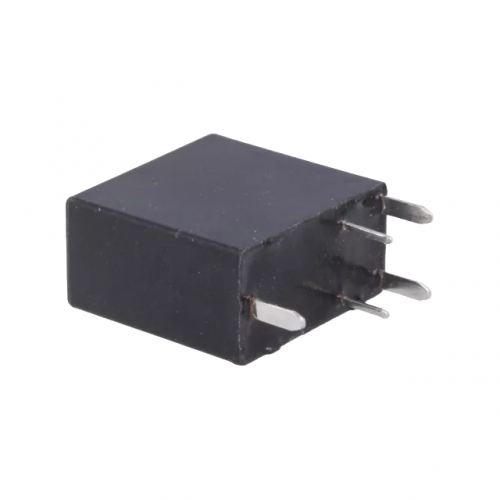

25A Automotive Relay HFKA/012-1ZST Single-Pole Changeover
US$ 7.99 / 1 Piece
1Piece Minimum order
Type:
Relay
Category:
Automotive
Brand:
Xiaoxibian
About this item
- This 25A HFKA/012-1ZST single-pole changeover relay is universally compatible with 12V automotive and light truck electrical systems, meeting OEM fit specifications for most domestic, import, and light-duty commercial vehicle models.
- Constructed with high-conductivity copper contacts and flame-retardant heat-resistant ABS housing, this relay delivers consistent 25A performance, resists corrosion, and withstands extreme under-hood temperature swings with zero premature failure.
- Every unit is 100% brand new and factory performance tested before leaving the production line, with no defects, wear, or prior use to guarantee reliable functionality right out of the package.
- This single-pole changeover relay is perfect for repairing or upgrading fuel pump circuits, fog light assemblies, power door lock systems, trailer wiring setups, and starter auxiliary circuits across your vehicle.
- Shipped in a static-resistant sealed protective bag to prevent electrical damage during transit, this relay arrives fully pre-calibrated and ready for immediate plug-and-play installation with no extra tools or prep required.
