25A motor load
Ultra-compact
Changeover contact configuration
Single or dual relays available
Class H (180°C) coil insulation rating
1. Coil Voltage Type: DC
2. Coil Operating Voltage: 12V
3. Contact Form: One Set Normally Open
4. Number of Contacts: Single Contact
5. Terminal Form: PCB Mount
6. Mounting Type: PCB Mount
7. Package Type: Plastic Encapsulated
8. Coil Power: Standard
9. Coil Characteristic: Monostable
10. Contact Material: AgSnO₂
11. Load Voltage: 12
12. Rated Coil Power: Approx. 0.64W
13. Dielectric Withstand Voltage: 500VAC 1min
14. Actuation Time (Unit: ms): ≤10
15. Release Time (Unit: ms): ≤10
16. Insulation Resistance (Unit: MΩ): 100
17. Maximum Rated Switching Current (DC): 25
18. Maximum Switching Voltage (DC): 16
19. Temperature Range: -40°C to 85°C
20. Mechanical Durability (Unit: Cycles): 10,000,000
21. Electrical endurance (units): 100,000
22. Application fields: Automatic doors/windows, central door locks, sunroof control, seat adjustment, indicator light control, wiper control, etc.
23. Weight (units: g): Approx. 4
24. Dimensions (units: mm³): 14 × 7.2 × 13.5

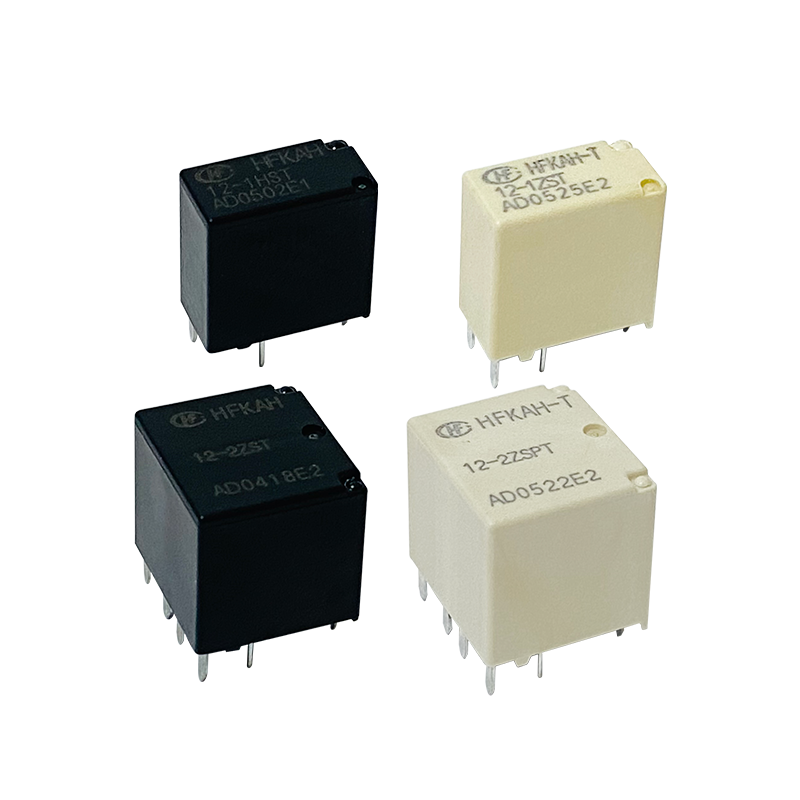

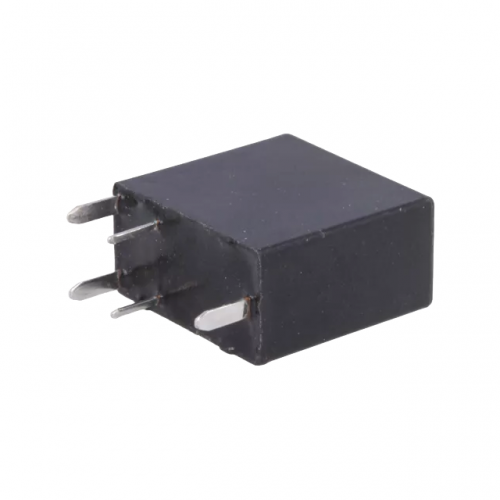

12VDC Automotive Relay HFKA/012-1HST One Set Normally Open
US$ 7.99 / 1 Piece
1Piece Minimum order
Type:
Relay
Category:
Automotive
Brand:
Xiaoxibian
About this item
- This 12VDC HFKA/012-1HST normally open automotive relay fits most 12V passenger cars, light trucks, and custom automotive electrical setups that match the HFKA series relay footprint and specifications.
- Built with premium copper conductive pins, heat-resistant silver alloy contacts, and flame-retardant ABS casing, this relay offers consistent performance, strong wear resistance, and a 10,000+ operational cycle lifespan.
- This HFKA/012-1HST relay is 100% brand new, factory tested to meet strict OEM performance standards, with no defects, wear, or prior use guaranteed.
- Perfect for upgrading automotive LED light bars, electric horns, cooling fans, fuel pumps, and other auxiliary 12V electrical systems that require reliable remote power switching.
- Each relay is shipped in an anti-static sealed bag to protect sensitive internal components from electrostatic damage during transit and storage, arriving ready for immediate installation.
