25A motor load
Ultra-compact
Changeover contact configuration
Single or dual relays available
Class H (180°C) coil insulation rating
1. Coil Voltage Type: DC
2. Coil Operating Voltage: 12V
3. Contact Form: One Set Normally Open
4. Number of Contacts: Single Contact
5. Terminal Form: PCB Mount
6. Mounting Type: PCB Mount
7. Package Type: Plastic Encapsulated
8. Coil Power: Low Operating Voltage Type
9. Coil Characteristic: Monostable
10. Contact Material: AgSnO₂
11. Load Voltage: 12
12. Rated Coil Power: Approx. 0.8W
13. Dielectric Withstand Voltage: 500VAC 1min
14. Actuation Time (Unit: ms): ≤10
15. Release Time (Unit: ms): ≤10
16. Insulation Resistance (Unit: MΩ): 100
17. Maximum Rated Switching Current (DC): 25
18. Maximum Switching Voltage (DC): 16
19. Temperature Range: -40°C to 85°C
20. Mechanical Durability (Unit: Cycles): 10,000,000
21. Electrical endurance (units): 100,000
22. Application fields: Automatic doors/windows, central door locks, sunroof control, seat adjustment, indicator light control, wiper control, etc.
23. Weight (units: g): Approx. 4
24. Dimensions (units: mm³): 14 × 7.2 × 13.5

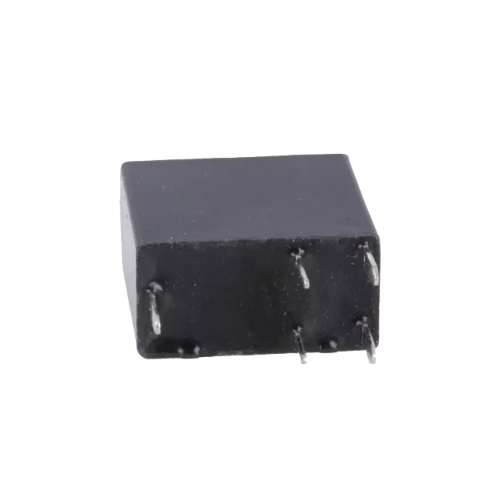

0.8W Automotive Relay HFKA/012-1HSPT One Set Normally Open
US$ 7.99 / 1 Piece
1Piece Minimum order
Type:
Relay
Category:
Automotive
Brand:
Xiaoxibian
About this item
- This 0.8W HFKA/012-1HSPT automotive relay is designed to be fully compatible with all 12V automotive electrical systems that call for a single set normally open relay, matching OEM fit for most sedans, SUVs, and light duty trucks.
- Built with high-conductivity copper internal contacts, heat-resistant insulating housing, and corrosion-resistant terminal pins, this relay delivers consistent performance even under harsh engine bay temperature, vibration, and moisture conditions.
- This brand new, factory-calibrated 0.8W normally open automotive relay undergoes strict functional testing before leaving the production line, with zero performance defects and durability that meets or exceeds original equipment manufacturer standards.
- This HFKA/012-1HSPT relay is ideal for powering and controlling automotive fog lights, horns, cooling fans, LED light bars, and auxiliary electrical accessories, reducing circuit strain to prevent premature switch and wiring failure.
- Each individual 0.8W normally open automotive relay ships in a static-proof sealed protective bag with clear product labeling, preventing transit damage and making part identification quick and hassle-free for installers.
