25A motor load
Ultra-compact
Normally open and changeover types available
Single or dual relays available
30A fuse rating available
1. Coil Voltage Type: DC
2. Coil Operating Voltage: 12V
3. Contact Configuration: Two-group changeover
4. Number of Contacts: Single contact
5. Terminal Configuration: PCB-mount
6. Mounting Type: PCB mounting
7. Package Type: Plastic-encapsulated
8. Coil Power: Standard
9. Coil Feature: Monostable
10. Contact Material: AgSnO₂
11. Load Voltage: 12V
12. Rated Coil Power: Approx. 0.64W
13. Dielectric Withstand Voltage: 500VAC 1min
14. Operating Time (Unit: ms): ≤10
15. Release Time (Unit: ms): ≤10
16. Insulation Resistance (Unit: MΩ): 100
17. Maximum Rated Switching Current (DC): 25
18. Maximum Switching Voltage (DC): 16
19. Temperature Range: -40°C to 85°C
20. Mechanical Durability (Unit: Cycles): 10,000,000
21. Electrical endurance (units): 100,000
22. Application fields: Automatic doors/windows, central door locks, sunroof control, seat adjustment, indicator light control, wiper control, etc.
23. Weight (units: g): Approx. 8
24. Dimensions (units: mm³): 14 × 15.4 × 13.5

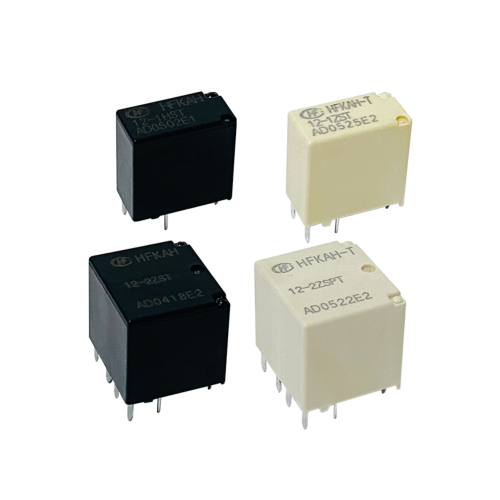

0.64W Automotive Relay HFKAH/12-2ZST Dual-Pole Changeover
US$ 15.99 / 1 Piece
1Piece Minimum order
Type:
Relay
Category:
Automotive
Brand:
Xiaoxibian
About this item
- This 0.64W HFKAH/12-2ZST dual-pole changeover automotive relay is universally compatible with all 12V passenger vehicles, light trucks, and aftermarket automotive electrical modification setups for plug-and-play installation.
- Constructed with high-purity copper conductive contacts and a flame-retardant, heat-resistant ABS housing, this relay resists under-hood vibration, corrosion, and extreme temperature fluctuations for extended service life.
- This brand new, factory-calibrated HFKAH/12-2ZST relay is 100% performance tested prior to shipping, with zero prior use or manufacturing defects to ensure consistent, reliable operation.
- Perfect for controlling automotive lighting upgrades, fuel pumps, wiper motors, audio system accessories, and other low-power electrical circuits, this dual-pole changeover relay delivers smooth, uninterrupted circuit switching.
- Each individual relay ships in a static-proof sealed bag with clear product identification labeling, protecting sensitive internal electrical components from physical damage and static discharge during transit and storage.
