25A motor load
Ultra-compact
Normally open and changeover types available
Single or dual relays available
30A fuse rating available
1. Coil Voltage Type: DC
2. Coil Operating Voltage: 12V
3. Contact Configuration: Two-group changeover
4. Number of Contacts: Single contact
5. Terminal Configuration: PCB-mount
6. Mounting Type: PCB mounting
7. Package Type: Plastic-encapsulated
8. Coil Power Rating: Monostable high-power type
9. Coil characteristic: Monostable
10. Contact material: AgSnO₂
11. Load voltage: 12
12. Rated coil power: Approx. 0.8W
13. Dielectric withstand voltage: 500VAC 1min
14. Operating time (unit: ms): ≤10
15. Release time (unit: ms): ≤10
16. Insulation Resistance (Unit: MΩ): 100
17. Maximum Rated Switching Current (DC): 25
18. Maximum Switching Voltage (DC): 16
19. Temperature Range: -40°C to 85°C
20. Mechanical Durability (Unit: Cycles): 10,000,000
21. Electrical endurance (units): 100,000
22. Application fields: Automatic doors/windows, central door locks, sunroof control, seat adjustment, indicator light control, wiper control, etc.
23. Weight (units: g): Approx. 8
24. Dimensions (units: mm³): 14 × 15.4 × 13.5

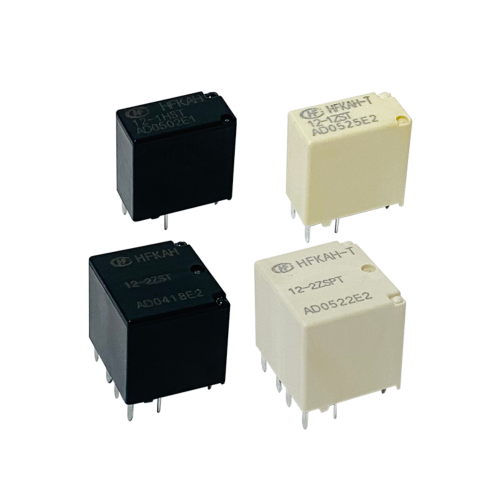

0.8W Automotive Relay HFKAH/12-2ZSPT Dual-Pole Changeover
US$ 15.99 / 1 Piece
1Piece Minimum order
Type:
Relay
Category:
Automotive
Brand:
Xiaoxibian
About this item
- This 0.8W HFKAH/12-2ZSPT dual-pole changeover automotive relay is engineered for universal compatibility with most 12V passenger vehicles, light trucks, and custom automotive electrical modification projects.
- Built with a flame-retardant high-temperature resistant housing and pure copper conductive contacts, this relay delivers consistent, low-resistance performance even in harsh under-hood operating environments.
- This brand-new, factory-calibrated HFKAH/12-2ZSPT relay meets strict OEM performance standards and is fully free of manufacturing defects, cosmetic damage, or prior use.
- This dual-pole changeover relay is perfect for reliably controlling automotive lighting circuits, power windows, horn systems, air conditioning compressors, and other low-voltage automotive electrical loads.
- Each individual relay ships in a sealed anti-static bag to protect sensitive internal components from static discharge, moisture, and physical damage during shipping and storage.
Jinhua Xiaoxibian Technology Co., Ltd
1 years
China
Avg Response Time: ≤24 h
Business Type: ATV start motor
