25A motor load
Ultra-compact
Available in normally open and changeover configurations
Single or dual relays available
30A fuse rating available
1. Coil Voltage Type: DC
2. Coil Operating Voltage: 12V
3. Contact Form: Two sets of normally open contacts
4. Number of Contacts: Single contact
5. Terminal Form: PCB-mount
6. Mounting Type: PCB mounting
7. Package Type: Plastic-encapsulated
8. Coil Power: Monostable high-power type
9. Coil characteristic: Monostable
10. Contact material: AgSnO₂
11. Load voltage: 12
12. Rated coil power: Approx. 0.8W
13. Dielectric withstand voltage: 500VAC 1min
14. Actuation time (unit: ms): ≤10
15. Release time (unit: ms): ≤10
16. Insulation Resistance (Unit: MΩ): 100
17. Maximum Rated Switching Current (DC): 25
18. Maximum Switching Voltage (DC): 16
19. Temperature Range: -40°C to 85°C
20. Mechanical Durability (Unit: Cycles): 10,000,000
21. Electrical endurance (units): 100,000
22. Application fields: Automatic doors/windows, central door locks, sunroof control, seat adjustment, indicator light control, wiper control, etc.
23. Weight (units: g): Approx. 8
24. Dimensions (units: mm³): 14 × 15.4 × 13.5

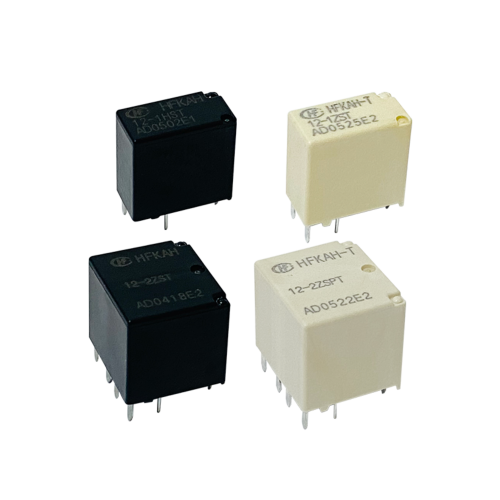

Automotive Relay HFKAH/12-2HSPT Two Normally Open 12VDC
US$ 15.99 / 1 Piece
1Piece Minimum order
Type:
Relay
Category:
Automotive
Brand:
Xiaoxibian
About this item
- This 12VDC HFKAH/12-2HSPT automotive relay is engineered to fit a wide range of passenger cars, light trucks, and aftermarket electrical modification setups requiring a dual normally open relay configuration.
- Crafted with high-temperature flame-retardant housing and premium pure copper internal contacts, this relay delivers stable conductivity and long-lasting durability even under harsh under-hood operating conditions.
- This brand new, factory-sealed HFKAH/12-2HSPT relay undergoes strict pre-shipment performance testing to ensure it meets original equipment specification standards right out of the box.
- Ideal for controlling automotive lighting systems, starter circuits, power windows, audio upgrades, and other electrical accessories that require reliable dual circuit power switching.
- Each relay ships in protective anti-static packaging to prevent transit damage and preserve its full electrical integrity prior to installation.
