25A motor load
Ultra-compact
Normally open and changeover types available
Single or dual relays available
30A fuse rating available
1. Coil Voltage Type: DC
2. Coil Operating Voltage: 12V
3. Contact Configuration: One changeover contact
4. Number of Contacts: Single contact
5. Terminal Configuration: PCB-mount
6. Mounting Type: PCB mounting
7. Package Type: Plastic-encapsulated
8. Coil Power: Standard
9. Coil Feature: Monostable
10. Contact Material: AgSnO₂
11. Load Voltage: 12V
12. Rated Coil Power: Approx. 0.64W
13. Dielectric Withstand Voltage: 500VAC 1min
14. Operating Time (Unit: ms): ≤10
15. Release Time (Unit: ms): ≤10
16. Insulation Resistance (Unit: MΩ): 100
17. Maximum Rated Switching Current (DC): 25
18. Maximum Switching Voltage (DC): 16
19. Temperature Range: -40°C to 85°C
20. Mechanical Durability (Unit: Cycles): 10,000,000
21. Electrical endurance (units): 100,000
22. Application fields: Automatic doors/windows, central door locks, sunroof control, seat adjustment, indicator light control, wiper control, etc.
23. Weight (units: g): Approx. 4
24. Dimensions (units: mm³): 14 × 7.2 × 13.5

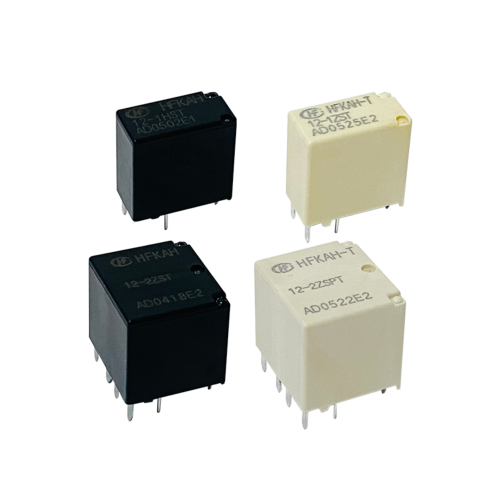

0.64W Automotive Relay HFKAH/12-1ZST Single-Pole Changeover
US$ 15.99 / 1 Piece
1Piece Minimum order
Type:
Relay
Category:
Automotive
Brand:
Xiaoxibian
About this item
- This 0.64W HFKAH/12-1ZST single-pole changeover automotive relay is universally compatible with most 12V passenger vehicles, light duty trucks, and custom automotive electrical modification builds for hassle-free installation with standard wiring harnesses.
- Crafted with high-purity copper conductive contacts and a flame-retardant, high-temperature resistant ABS shell, this relay delivers stable electrical performance, resists corrosion and overheating, and supports over 100,000 reliable switching cycles for extended service life.
- This is a brand new, factory-tested OEM-grade relay with zero prior use, with every unit undergoing full electrical continuity and load testing before leaving the facility to guarantee consistent performance matching original part specifications.
- Perfect for powering and controlling automotive fog lights, horn systems, fuel pumps, cooling fan circuits, and other low to mid-power 12V electrical accessories that require single-pole changeover switching functionality.
- Each relay is shipped in an individual anti-static protective bag to prevent electrostatic damage during transit and storage, with clearly printed specification labels for quick identification when sorting parts or prepping for installation.
