25A motor load
Ultra-compact
Normally open and changeover types available
Single or dual relays available
30A fuse rating available
1. Coil Voltage Type: DC
2. Coil Operating Voltage: 12V
3. Contact Configuration: Single-Pole Changeover
4. Number of Contacts: Single Contact
5. Terminal Configuration: PCB Mount
6. Mounting Type: PCB Mount
7. Package Type: Plastic Encapsulated
8. Coil Power: Monostable Low-Power Type
9. Coil characteristic: Monostable
10. Contact material: AgSnO₂
11. Load voltage: 12
12. Rated coil power: Approx. 0.48W
13. Dielectric withstand voltage: 500VAC 1min
14. Operating time (unit: ms): ≤10
15. Release time (unit: ms): ≤10
16. Insulation Resistance (Unit: MΩ): 100
17. Maximum Rated Switching Current (DC): 25
18. Maximum Switching Voltage (DC): 16
19. Temperature Range: -40°C to 85°C
20. Mechanical Durability (Unit: Cycles): 10,000,000
21. Electrical endurance (units): 100,000
22. Application fields: Automatic doors/windows, central door locks, sunroof control, seat adjustment, indicator light control, wiper control, etc.
23. Weight (units: g): Approx. 4
24. Dimensions (units: mm³): 14 × 7.2 × 13.5

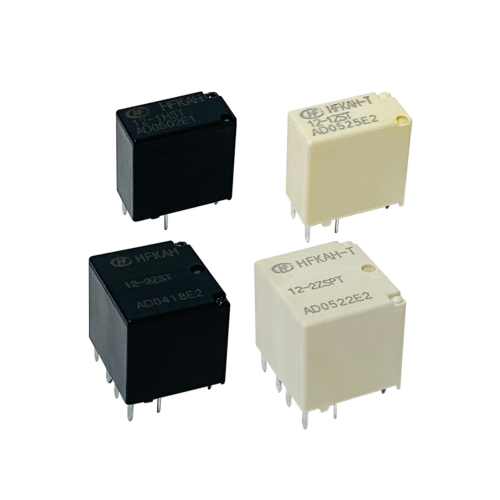

Low-Power Automotive Relay HFKAH/12-1ZSLT Single-Pole Changeover
US$ 15.99 / 1 Piece
1Piece Minimum order
Type:
Relay
Category:
Automotive
Brand:
Xiaoxibian
About this item
- This HFKAH/12-1ZSLT low-power automotive relay is compatible with most 12V passenger cars, light trucks, and off-road vehicles, meeting original equipment specifications for seamless, modification-free installation.
- Built with high-conductivity copper alloy contacts and a flame-retardant, impact-resistant nylon housing, this single-pole changeover relay resists corrosion, vibration, and under-hood heat for reliable long-term use.
- This brand new, factory-tested automotive relay undergoes full electrical performance and durability checks before distribution, with no signs of wear, defects, or prior use to guarantee consistent function.
- Perfect for controlling low-power automotive circuits including interior lighting, power windows, audio systems, and small auxiliary motors, this single-pole changeover relay reliably switches between circuit states to prevent component overload.
- Each relay is shipped in individual anti-static, crush-resistant packaging to protect sensitive internal components during transit, with clear part labeling for easy identification and inventory tracking.
