25A motor load
Ultra-compact
Normally open and changeover types available
Single or dual relays available
30A fuse rating available
1. Coil Voltage Type: DC
2. Coil Operating Voltage: 12V
3. Contact Configuration: Two-group changeover
4. Number of Contacts: Single contact
5. Terminal Configuration: PCB-mount
6. Mounting Type: PCB mounting
7. Package Type: Plastic-encapsulated
8. Coil Power: Standard
9. Coil Feature: Monostable
10. Contact Material: AgSnO₂
11. Load Voltage: 12
12. Rated Coil Power: Approx. 0.64W
13. Dielectric Withstand Voltage: 500VAC 1min
14. Operating Time (Unit: ms): ≤10
15. Release Time (Unit: ms): ≤10
16. Insulation Resistance (Unit: MΩ): 100
17. Maximum Rated Switching Current (DC): 25
18. Maximum Switching Voltage (DC): 16
19. Temperature Range: -40°C to 125°C
20. Mechanical Durability (Unit: Cycles): 10,000,000
21. Electrical endurance (units): 100,000
22. Application fields: Automatic doors/windows, central door locks, sunroof control, seat adjustment, indicator light control, wiper control, etc.
23. Weight (units: g): Approx. 8
24. Dimensions (units: mm³): 14 × 15.4 × 14.2

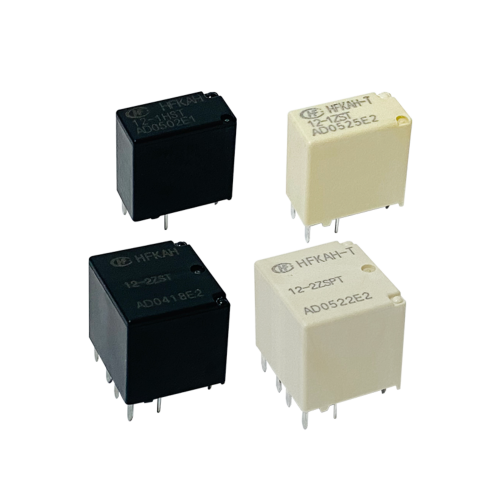

Automotive Relay HFKAH-T/12-2ZST Dual-Group Switching Standard Type 0.64W
US$ 15.99 / 1 Piece
1Piece Minimum order
Type:
Relay
Category:
Automotive
Brand:
Xiaoxibian
About this item
- This HFKAH-T/12-2ZST dual-group switching automotive relay fits most 12V passenger vehicles, light trucks, and aftermarket electrical modification setups, matching OE connector and footprint specs for direct plug-and-play installation without custom wiring adjustments.
- Built with high-conductivity copper alloy contacts and flame-retardant PA66 housing, this 0.64W standard relay resists arc damage, under-hood vibration, and extreme temperature fluctuations for consistent long-term performance.
- This brand-new, factory-tested HFKAH-T/12-2ZST relay meets or exceeds original equipment performance standards, with zero pre-existing defects to ensure full reliability right out of the packaging.
- Perfect for controlling high-load automotive electrical systems including headlights, cooling fans, power windows, fog lights, and aftermarket audio upgrades, this dual-group switching relay reliably handles split circuit loads without unwanted voltage drop.
- Each relay ships in anti-static, moisture-sealed protective packaging that prevents internal component damage from static discharge and corrosion during transit and storage, with clearly printed model labeling for quick part identification.
