25A motor load
Ultra-compact
Normally open and changeover types available
Single or dual relays available
30A fuse rating available
1. Coil Voltage Type: DC
2. Coil Operating Voltage: 12V
3. Contact Configuration: Two-group changeover
4. Number of Contacts: Single contact
5. Terminal Configuration: PCB-mount
6. Mounting Type: PCB mounting
7. Package Type: Solder mask type
8. Coil Power: Monostable high-power type
9. Coil Characteristic: Monostable
10. Contact Material: AgSnO₂
11. Load Voltage: 12V
12. Rated Coil Power: Approx. 0.8W
13. Dielectric Withstand Voltage: 500VAC 1min
14. Actuation Time (Unit: ms): ≤10
15. Release Time (Unit: ms): ≤10
16. Insulation Resistance (Unit: MΩ): 100
17. Maximum Rated Switching Current (DC): 25
18. Maximum Switching Voltage (DC): 16
19. Temperature Range: -40°C to 125°C
20. Mechanical Durability (Unit: Cycles): 10,000,000
21. Electrical endurance (units): 100,000
22. Application fields: Automatic doors/windows, central door locks, sunroof control, seat adjustment, indicator light control, wiper control, etc.
23. Weight (units: g): Approx. 8
24. Dimensions (units: mm³): 14 × 15.4 × 14.2

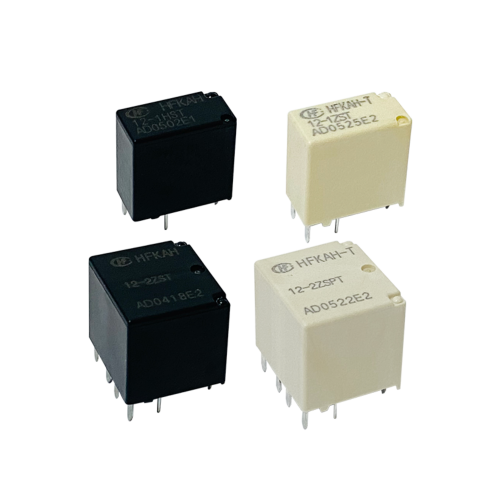

Automotive Relay HFKAH-T/12-2ZPT Dual-Group Switching High Power 25A
US$ 15.99 / 1 Piece
1Piece Minimum order
Type:
Relay
Category:
Automotive
Brand:
Xiaoxibian
About this item
- This HFKAH-T/12-2ZPT automotive relay is fully compatible with all 12V automotive and light truck electrical systems that require dual-group switching, serving as a direct replacement for matching OEM relay part numbers with the same 25A rating.
- Built with premium copper alloy contact points and a flame-retardant high-temperature plastic housing, this high-power relay resists corrosion, arcing, and thermal wear to deliver consistent performance even under sustained 25A electrical loads.
- This is a brand new, factory-calibrated dual-group switching relay with zero prior use, with all electrical performance benchmarks tested to meet or exceed original manufacturer quality standards.
- Perfect for powering high-draw automotive accessories like off-road fog lights, winches, aftermarket audio systems, and trailer lighting, this relay isolates low-voltage control circuits from high-power loads to prevent damage to sensitive vehicle electronics.
- Each relay ships in an anti-static sealed protective bag to prevent electrostatic damage during transit, with an included printed installation guide to support fast, hassle-free setup.
