25A motor load
Ultra-compact
Normally open and changeover types available
Single or dual relays available
30A fuse rating available
1. Coil Voltage Type: DC
2. Coil Operating Voltage: 12V
3. Contact Form: One Set NO
4. Number of Contacts: Single Contact
5. Terminal Form: PCB Mount
6. Mounting Type: PCB Mount
7. Package Type: Solder Mask Type
8. Coil Power: Standard Type
9. Coil Feature: Monostable
10. Contact Material: AgSnO₂
11. Load Voltage: 12V
12. Rated Coil Power: Approx. 0.64W
13. Dielectric Withstand Voltage: 500VAC 1min
14. Actuation Time (Unit: ms): ≤10
15. Release Time (Unit: ms): ≤10
16. Insulation Resistance (Unit: MΩ): 100
17. Maximum Rated Switching Current (DC): 25
18. Maximum Switching Voltage (DC): 16
19. Temperature Range: -40°C to 125°C
20. Mechanical Durability (Unit: Cycles): 10,000,000
21. Electrical endurance (units): 100,000
22. Application fields: Automatic doors/windows, central door locks, sunroof control, seat adjustment, indicator light control, wiper control, etc.
23. Weight (units: g): Approx. 4
24. Dimensions (units: mm³): 14 × 7.2 × 14.2

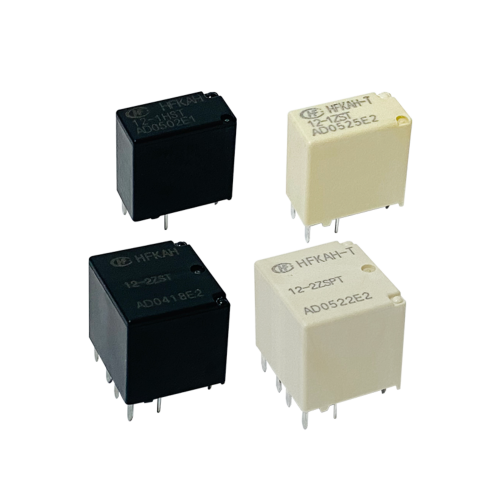

One set of normally open 0.64W automotive relay HFKAH-T/12-1HT standard type
US$ 15.99 / 1 Piece
1Piece Minimum order
Type:
Relay
Category:
Automotive
Brand:
Xiaoxibian
About this item
- This HFKAH-T/12-1HT 0.64W normally open automotive relay is universally compatible with most 12V passenger cars, light trucks, and modified automotive electrical systems for easy plug-and-play installation.
- Constructed with high-purity copper conductive contacts and a flame-retardant ABS housing, this standard type automotive relay delivers stable performance even under extreme temperature, humidity, and road vibration conditions.
- This brand new, factory-tested 0.64W normally open automotive relay passes 100% functional quality inspections before distribution, ensuring no manufacturing defects and long-lasting reliable operation.
- Perfect for controlling vehicle lighting circuits, cooling fans, starter systems, audio upgrades, and other 12V automotive accessories, this relay prevents circuit overload and extends the service life of your vehicle’s electrical components.
- Each set of the HFKAH-T/12-1HT automotive relay is shipped in an anti-static sealed package with clear part labeling, protecting internal components from static damage and simplifying quick part identification for installers.
