25A motor load
Ultra-compact
Changeover contact form
Single or dual relays available
Class H (180°C) coil insulation rating
1. Coil Voltage Type: DC
2. Coil Operating Voltage: 12V
3. Contact Form: Two sets of changeover contacts
4. Number of Contacts: Single contact
5. Terminal Form: PCB-mounted
6. Mounting Type: PCB mounting
7. Package Type: Plastic encapsulated
8. Coil Power: Low operating voltage type
9. Coil Characteristic: Monostable
10. Contact Material: AgSnO₂
11. Load Voltage: 12V
12. Rated Coil Power: Approx. 0.8W
13. Dielectric Withstand Voltage: 500VAC 1min
14. Actuation Time (Unit: ms): ≤10
15. Release Time (Unit: ms): ≤10
16. Insulation Resistance (Unit: MΩ): 100
17. Maximum Rated Switching Current (DC): 25
18. Maximum Switching Voltage (DC): 16
19. Temperature Range: -40°C to 125°C
20. Mechanical Endurance (Unit: Cycles): 10,000,000
21. Electrical endurance (units): 100,000
22. Product Application Fields: Automatic doors/windows, central door locks, sunroof control, seat adjustment, indicator light control, wiper control, etc. (Note: The original text had a period after “central door locks”; it has been corrected to a comma to maintain consistent enumeration logic)
23. Weight (Unit: g): Approx. 8
24. Volume (Unit: mm³): 14 × 15.4 × 14.2

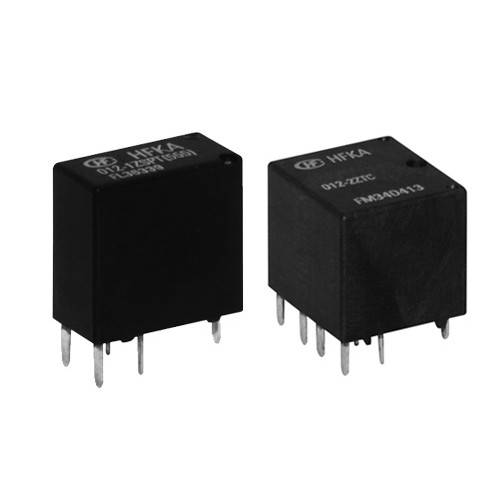

0.8W Dual-Group Automotive Relay HFKA-T/012-2ZSPT Low Operating Voltage
US$ 11.99 / 1 Piece
1Piece Minimum order
Type:
Relay
Category:
Automotive
Brand:
Xiaoxibian
About this item
- This 0.8W dual-group HFKA-T/012-2ZSPT automotive relay is fully compatible with all 12V passenger cars, light trucks, and off-road vehicles that require low operating voltage relay support for electrical upgrades.
- Built with premium tinned copper contacts and a flame-retardant heat-resistant shell, this low-voltage relay offers exceptional anti-corrosion performance and stable power transmission for over 100,000 operating cycles.
- This HFKA-T/012-2ZSPT relay is 100% brand new, factory-calibrated and tested to meet original equipment performance standards, with no cosmetic or functional defects of any kind.
- Perfect for powering LED light bars, aftermarket audio systems, vehicle security alarms, and power window upgrades, this 0.8W dual-group relay reduces unnecessary power drain to preserve your vehicle’s battery life.
- Each relay ships in a static-resistant sealed bag with a clear quick-start installation guide, ensuring the unit arrives undamaged and makes setup straightforward for both DIY enthusiasts and professional auto technicians.
