25A motor load
Ultra-compact
Changeover contact form
Single or dual relays available
Class H (180°C) coil insulation rating
1. Coil Voltage Type: DC
2. Coil Operating Voltage: 12V
3. Contact Form: Two sets of normally open contacts
4. Number of Contacts: Single contact
5. Terminal Form: PCB-mounted
6. Mounting Type: PCB mounting
7. Package Type: Plastic encapsulated
8. Coil Power: Low operating voltage type
9. Coil Characteristic: Monostable
10. Contact Material: AgSnO₂
11. Load Voltage: 12
12. Rated Coil Power: Approx. 0.8W
13. Dielectric Withstand Voltage: 500VAC 1min
14. Actuation Time (Unit: ms): ≤10
15. Release Time (Unit: ms): ≤10
16. Insulation Resistance (Unit: MΩ): 100
17. Maximum Rated Switching Current (DC): 25
18. Maximum Switching Voltage (DC): 16
19. Temperature Range: -40°C to 125°C
20. Mechanical Endurance (Unit: Cycles): 10,000,000
21. Electrical endurance (units): 100,000
22. Product Application Fields: Automatic doors/windows, central door locks, sunroof control, seat adjustment, indicator light control, wiper control, etc. (Note: The original text had a period after “central door locks”; it has been corrected to a comma to maintain consistent enumeration logic)
23. Weight (Unit: g): Approx. 8
24. Volume (Unit: mm³): 14 × 15.4 × 14.2

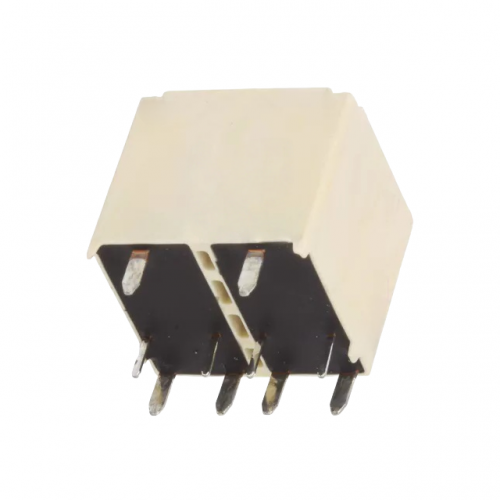

12VDC Dual Normally Open Automotive Relay HFKA-T/012-2HSPT Low Operating Voltage
US$ 11.99 / 1 Piece
1Piece Minimum order
Type:
Relay
Category:
Automotive
Brand:
Xiaoxibian
About this item
- This 12VDC dual normally open HFKA-T/012-2HSPT relay is a direct drop-in replacement for matching OEM automotive relay part numbers, fitting a wide range of passenger cars, light trucks, and off-road automotive electrical systems.
- Crafted with high-purity copper contact pins and flame-retardant ABS housing, this low operating voltage relay delivers exceptional corrosion resistance, stable electrical conductivity, and long service life even in harsh under-hood conditions.
- This brand-new, factory-sealed HFKA-T/012-2HSPT automotive relay undergoes strict pre-shipment functional testing to guarantee zero defects and consistent performance matching original manufacturer specifications.
- Ideal for powering automotive lighting systems, horn circuits, starter accessories, and electric cooling fans, this dual normally open relay reliably controls high-current loads without overheating or unexpected voltage drops.
- Each individual relay is packaged in an anti-static EPE foam sleeve inside a moisture-sealed retail bag, protecting sensitive internal electrical components from static damage and environmental contamination during shipping and storage.
