25A motor load
Ultra-compact
Changeover contact form
Single or dual relays available
Class H (180°C) coil insulation rating
1. Coil Voltage Type: DC
2. Coil Operating Voltage: 12V
3. Contact Form: Two sets of normally open contacts
4. Number of Contacts: Single contact
5. Terminal Form: PCB-mounted
6. Mounting Type: PCB mounting
7. Package Type: Plastic encapsulated
8. Coil Power: Low operating voltage type
9. Coil Characteristic: Monostable
10. Contact Material: AgSnO₂
11. Load Voltage: 12
12. Rated Coil Power: Approx. 0.8W
13. Dielectric Withstand Voltage: 500VAC 1min
14. Actuation Time (Unit: ms): ≤10
15. Release Time (Unit: ms): ≤10
16. Insulation Resistance (Unit: MΩ): 100
17. Maximum Rated Switching Current (DC): 25
18. Maximum Switching Voltage (DC): 16
19. Temperature Range: -40°C to 125°C
20. Mechanical Endurance (Unit: Cycles): 10,000,000
21. Electrical endurance (units): 100,000
22. Application fields: Automatic doors/windows, central door locks, sunroof control, seat adjustment, indicator light control, wiper control, etc.
23. Weight (units: g): Approx. 8
24. Dimensions (units: mm³): 14 × 15.4 × 14.2

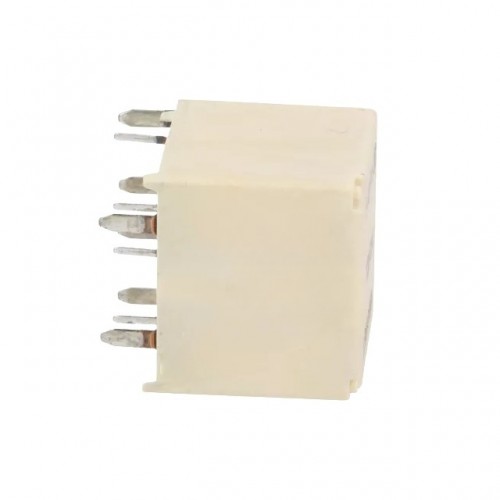

16DC Dual Normally Open Automotive Relay HFKA-T/012-2HPT
US$ 11.99 / 1 Piece
1Piece Minimum order
Type:
Relay
Category:
Automotive
Brand:
Xiaoxibian
About this item
- This HFKA-T/012-2HPT 16DC dual normally open automotive relay is fully compatible with all 12V automotive electrical systems, meeting OEM specifications for direct drop-in replacement of matching factory dual circuit relays.
- Built with high-conductivity copper alloy contacts and a flame-retardant, heat-resistant housing, this relay delivers reliable performance even under sustained high-load operation and harsh under-hood operating conditions.
- This is a brand new, factory-tested automotive relay with zero signs of wear or defect, guaranteed to deliver consistent conductivity and response time across its full rated service life.
- Perfect for controlling dual high-power automotive accessories including auxiliary lights, cooling fans, audio systems, and winch circuits, this relay prevents circuit overload and extends the lifespan of connected electrical components.
- Each relay comes individually packaged in an anti-static, moisture-proof sealed bag to protect sensitive internal components from damage during transit and long-term pre-installation storage.
