25A motor load
Ultra-compact
Changeover contact form
Single or dual relays available
Class H (180°C) coil insulation rating
1. Coil Voltage Type: DC
2. Coil Operating Voltage: 12V
3. Contact Form: One set changeover
4. Number of Contacts: Single contact
5. Terminal Form: PCB-mounted
6. Mounting Type: PCB mounting
7. Package Type: Solder mask type
9. Coil Power: Standard type
10. Coil Characteristic: Monostable
11. Contact Material: AgSnO₂
15. Load Voltage: 12
16. Rated Coil Power: Approx. 0.64W
17. Dielectric Withstand Voltage: 500VAC 1min
18. Actuation Time (Unit: ms): ≤10
19. Release Time (Unit: ms): ≤10
22. Insulation Resistance (Unit: MΩ): 100
24. Maximum Rated Switching Current (DC): 25
26. Maximum Switching Voltage (DC): 16
27. Temperature Range: -40°C to 125°C
28. Mechanical Endurance (Unit: Cycles): 10,000,000
29. Electrical endurance (units): 100,000
30. Contact Gap (Unit: mm): -
31. Product Application Fields: Automatic doors and windows, central door locks, sunroof control, seat adjustment, indicator light control, wiper control, etc.
33. Weight (Unit: g): Approx. 4
34. Volume (Unit: mm³): 14×7.2×14.2

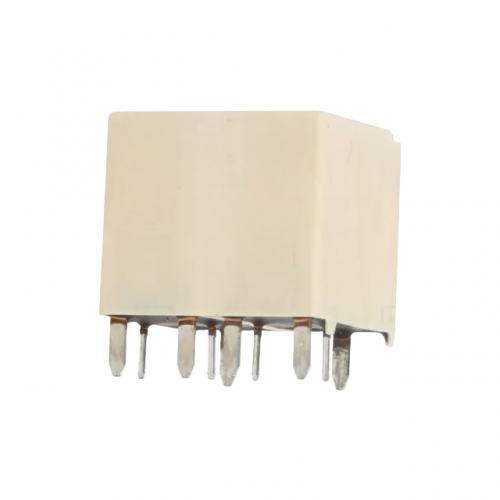

25A Automotive Relay Switching Unit HFKA-T/012-1ZT Standard Type
US$ 11.99 / 1 Piece
1Piece Minimum order
Type:
Relay
Category:
Automotive
Brand:
Xiaoxibian
About this item
- This HFKA-T/012-1ZT 25A automotive relay switching unit is engineered to match OEM specifications for most 12V domestic and import passenger cars, light trucks, and off-road vehicles, delivering a seamless plug-and-play fit for factory replacement or custom electrical builds.
- Constructed with high-conductivity copper alloy contacts and a heat-resistant, flame-retardant ABS housing, this standard type relay resists arc erosion, constant vibration, and under-hood temperature extremes to deliver consistent performance for over 100,000 switching cycles.
- This brand-new factory-tested 25A automotive relay is free of manufacturing defects, with full compliance with IEC automotive electrical safety standards to ensure reliable function as soon as it is installed.
- Perfect for controlling high-current vehicle accessories including headlights, fog lights, cooling fans, car audio systems, and winch setups, this relay switching unit prevents circuit overloads to protect your vehicle’s sensitive electrical components from unexpected damage.
- Each individual HFKA-T/012-1ZT relay comes packaged in a static-resistant protective sleeve to prevent electrical damage during transit and storage, with clearly printed specification labels for fast, easy identification during repairs or custom project builds.
