25A motor load
Ultra-compact
Changeover contact form
Single or dual relays available
H-class (180°C) coil insulation rating
1. Coil Voltage Type: DC
2. Coil Operating Voltage: 12V
3. Contact Form: One set changeover
4. Number of Contacts: Single contact
5. Terminal Form: PCB-mount
6. Mounting Type: PCB mounting
7. Package Type: Plastic Encapsulated
9. Coil Power: Standard
10. Coil Characteristic: Monostable
11. Contact Material: AgSnO₂
15. Load Voltage: 12V
16. Rated Coil Power: Approx. 0.64W
17. Dielectric Withstand Voltage: 500VAC 1min
18. Operating Time (Unit: ms): ≤10
19. Release Time (Unit: ms): ≤10
22. Insulation Resistance (Unit: MΩ): 100
23. Maximum Rated Switching Current (AC): -
24. Maximum Rated Switching Current (DC): 25
25. Maximum Switching Voltage (AC): -
26. Maximum Switching Voltage (DC): 16
27. Temperature Range: -40°C to 125°C
28. Mechanical Endurance (Units): 10,000,000
29. Electrical Endurance (Units): 100,000
30. Contact Gap (Unit: mm): -
31. Product Application Fields: Automatic doors and windows, central door locks, sunroof control, seat adjustment, indicator light control, wiper control, etc. (The period after “central door locks” in the original text has been corrected to a comma to maintain consistent enumeration logic)
32. Product Application Scenarios: -
33. Weight (Unit: g): Approx. 4
34. Volume (Unit: mm³): 14×7.2×14.2

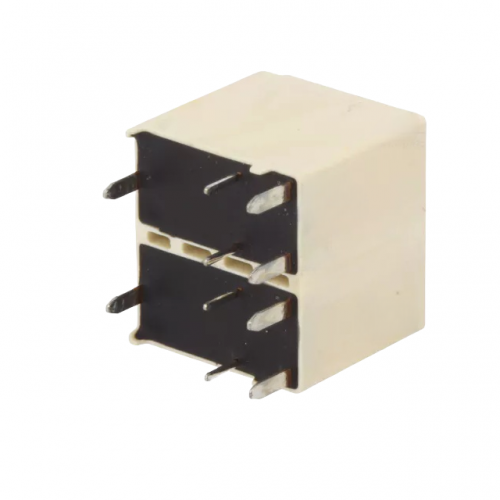

0.64W Automotive Relay Set HFKA-T/012-1ZST Standard Type
US$ 11.99 / 1 Piece
1Piece Minimum order
Type:
Relay
Category:
Automotive
Brand:
Xiaoxibian
About this item
- This HFKA-T/012-1ZST 0.64W automotive relay set is universally compatible with most 12V passenger cars, light trucks, and modified off-road vehicles that require standard micro relay replacements for electrical system repairs or upgrades.
- Crafted with high-temperature resistant copper alloy contacts and flame-retardant ABS housing, this 0.64W standard automotive relay set delivers stable conductivity, resists corrosion, and holds up to long-term use in harsh under-hood environments.
- All HFKA-T/012-1ZST 0.64W automotive relay sets ship brand new and factory-tested to meet original equipment performance specifications, with no signs of wear, defects, or prior use.
- This standard-type 0.64W automotive relay set is ideal for repairing or upgrading vehicle lighting systems, horn circuits, fuel pump controls, wiper motors, and other low-power automotive electrical accessories.
- Each HFKA-T/012-1ZST 0.64W automotive relay set comes packaged in a moisture-proof, anti-static sealed bag with clearly marked product specs and a quick installation guide to protect components during transit and simplify setup.
