25A motor load
Ultra-compact
Changeover contact form
Single or dual relays available
H-class (180°C) coil insulation rating
1. Coil Voltage Type: DC
2. Coil Operating Voltage: 12V
3. Contact Form: One set changeover
4. Number of Contacts: Single contact
5. Terminal Form: PCB-mount
6. Mounting Type: PCB mounting
7. Package Type: Solder Mask Type
8. Coil Power: Low Operating Voltage Type
9. Coil Characteristic: Monostable
10. Contact Material: AgSnO₂
11. Load Voltage: 12V
12. Rated Coil Power: Approx. 0.8W
13. Dielectric Withstand Voltage: 500VAC 1min
14. Actuation Time (Unit: ms): ≤10
15. Release Time (Unit: ms): ≤10
16. Insulation Resistance (Unit: MΩ): 100
17. Maximum rated switching current (DC): 25
18. Maximum switching voltage (DC): 16
19. Temperature range: -40°C to 125°C
20. Mechanical endurance (cycles): 10,000,000
21. Electrical endurance (cycles): 100,000
22. Product Application Fields: Automatic doors/windows, central door locks, sunroof control, seat adjustment, indicator light control, wiper control, etc. (The period after “central door locks” in the original text has been corrected to a comma to maintain consistent enumeration logic)
23. Weight (Unit: g): Approx. 4
24. Volume (Unit: mm³): 14×7.2×14.2

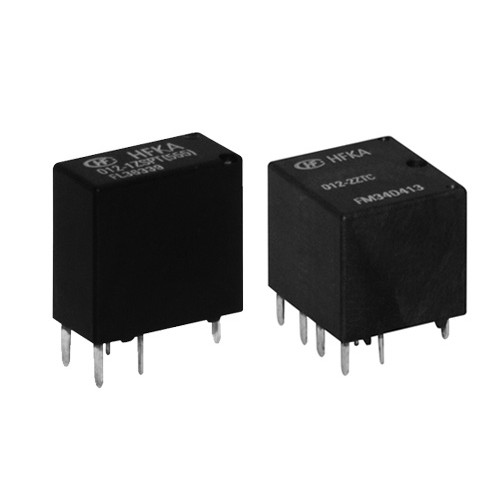

0.8W Automotive Changeover Relay HFKA-T/012-1ZPT Low Operating Voltage
US$ 11.99 / 1 Piece
1Piece Minimum order
Type:
Relay
Category:
Automotive
Brand:
Xiaoxibian
About this item
- This 0.8W HFKA-T/012-1ZPT changeover relay fits all 12V automotive electrical setups, directly cross-referencing with matching OEM relay part numbers for a no-modification, plug-and-play installation.
- Crafted with high-grade flame-retardant plastic housing and pure copper internal conductive pins, this relay boasts exceptional heat resistance, corrosion protection, and stable electrical conductivity for long-lasting, reliable performance.
- This brand-new, factory-sealed changeover relay undergoes strict pre-shipment functional testing to guarantee zero defects, consistent low operating voltage performance, and full compliance with original automotive part standards.
- Ideal for controlling automotive lighting systems, horn circuits, fuel pump operations, and interior accessory power supplies, this low-operating-voltage relay reliably regulates current flow to prevent component burnout and electrical system faults.
- Each relay comes packaged in a static-resistant protective pouch to prevent electrostatic damage during shipping and storage, with clear part labeling for easy identification and hassle-free inventory management.
