25A motor load
Ultra-compact
Changeover contact configuration
Single or dual relays (8-pin) available
Class H (180°C) coil insulation rating
1. Coil Voltage Type: DC
2. Coil Operating Voltage: 12
3. Contact Form: Two sets of changeover
4. Number of Contacts: Double contacts
5. Terminal Form: PCB-mount
6. Mounting Type: PCB mounting
7. Package Type: Solder mask type
8. Coil Power: -:0.655
9. Coil characteristic: Monostable
10. Contact material: T: AgSnO₂
11. Packaging type: Tube or reel packaging
12. Load voltage: 12
13. Rated coil power: Approx. 0.65W
14. Dielectric withstand voltage: 500VAC 1min
15. Operating time (unit: ms): ≤10
16. Release Time (Unit: ms): ≤10
17. Insulation resistance (unit: MΩ): 100
18. Maximum rated switching current (DC): 60
19. Maximum switching voltage (DC): 16
20. Temperature range: -40°C to 125°C
21. Mechanical endurance (unit: cycles): 10,000,000
22. Electrical endurance (units): 100,000 (For more details, please refer to the sample)
23. Product application areas: Automatic doors and windows, central door locks, sunroof control, seat adjustment, mirror adjustment
24. Weight (units: g): Approx. 6.5
25. Volume (units: mm³): 12 × 13.8 × 14

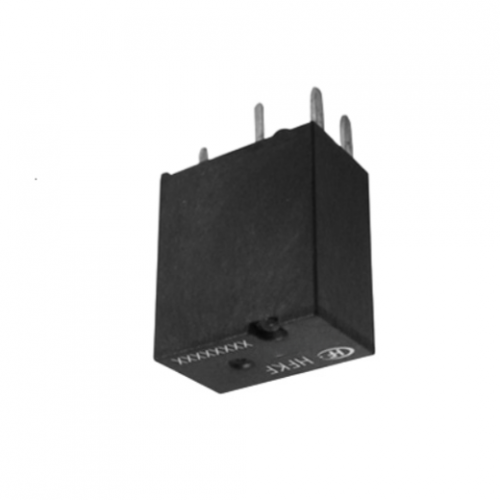

12VDC Automotive Relay HFKF-T/12-BZT Dual-Group Switching
US$ 12.99 / 1 Piece
1Piece Minimum order
Type:
Relay
Category:
Automotive
Brand:
Xiaoxibian
About this item
- This HFKF-T/12-BZT 12VDC dual-group switching relay is fully compatible with all standard 12V passenger cars, pickup trucks, SUVs, and light commercial vehicle electrical systems for hassle-free drop-in replacement or upgrade use.
- Built with premium tinned copper conductive pins, oxidation-resistant silver alloy contacts, and flame-retardant PC housing, this relay offers reliable performance and a 2x longer service life than generic aftermarket alternatives.
- This brand new, factory-calibrated relay passes 100% load-bearing and switching performance testing before leaving the production line, ensuring no faulty units and consistent operation right upon arrival.
- Perfect for dual-circuit automotive projects including fog light switching, audio system power control, alarm circuit isolation, and off-road auxiliary equipment management, it supports independent control of two separate electrical loads simultaneously.
- Each unit is shipped in an anti-static sealed bag with a clear printed wiring guide, protecting the relay from electrostatic damage during transit and making installation quick and straightforward for both DIYers and professional mechanics.
