25A motor load
Ultra-compact
Changeover contact configuration
Single or dual relays (8-pin) available
Class H (180°C) coil insulation rating
1. Coil Voltage Type: DC
2. Coil Operating Voltage: 12V
3. Contact Form: Two sets of changeover contacts
4. Number of Contacts: Double contacts
5. Terminal Form: PCB-mount
6. Mounting Type: PCB mounting
7. Package Type: Plastic-encapsulated
8. Coil Power: 0.655W
9. Coil characteristic: Monostable
10. Contact material: T: AgSnO₂
11. Packaging type: Tube or reel packaging
12. Load voltage: 12
13. Rated coil power: Approx. 0.65W
14. Dielectric withstand voltage: 500VAC 1min
15. Operating time (unit: ms): ≤10
16. Release Time (Unit: ms): ≤10
17. Insulation resistance (unit: MΩ): 100
18. Maximum rated switching current (DC): 60
19. Maximum switching voltage (DC): 16
20. Temperature range: -40°C to 125°C
21. Mechanical endurance (unit: cycles): 10,000,000
22. Electrical endurance (units): 100,000 (For more details, please refer to the sample)
23. Product application areas: Automatic doors and windows, central door locks, sunroof control, seat adjustment, mirror adjustment
24. Weight (units: g): Approx. 6.5
25. Volume (units: mm³): 12 × 13.8 × 14

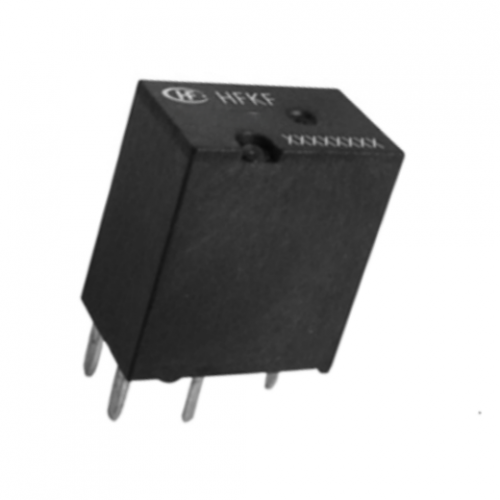

25A Automotive Relay HFKF-T/12-BZST Dual-Pole Changeover
US$ 12.99 / 1 Piece
1Piece Minimum order
Type:
Relay
Category:
Automotive
Brand:
Xiaoxibian
About this item
- This 25A HFKF-T/12-BZST dual-pole changeover automotive relay fits all standard 12V passenger vehicles, light-duty trucks, and custom electrical modification builds for zero-hassle installation.
- Crafted with high-purity copper contact pins and a heat-resistant, flame-retardant ABS housing, this relay maintains steady conductivity and stands up to constant vibration, road grime, and under-hood temperature swings.
- This is a brand new, factory-calibrated unit that undergoes rigorous pre-shipping performance testing to guarantee zero manufacturing defects or functional flaws.
- Perfect for powering auxiliary fog lights, cooling fans, audio amplifiers, and off-road lighting setups, this dual-pole changeover relay safely handles high-current circuits to prevent electrical overload and component damage.
- Each individual relay is shipped in a static-sealed, moisture-proof packaging sleeve to protect its sensitive internal electrical components from static discharge, dust, and water damage during transit and storage.
