25A Motor Load
Ultra-Compact
Changeover Contact Configuration
Single or Dual Relay (8-Pin) Options Available
Class H (180°C) Coil Insulation Rating
1. Coil Voltage Type: DC
2. Coil Operating Voltage: 12V
3. Contact Configuration: Two Changeover Groups
4. Number of Contacts: Double Contacts
5. Lead Form: PCB Mount
6. Mounting Type: PCB Mount
7. Package Type: Plastic Encapsulated
8. Coil Power: 0.9W
9. Coil Characteristic: Monostable
10. Contact Material: T: AgSnO₂
11. Packaging: Tube or Tape Reel
12. Load Voltage: 12V
13. Rated Coil Power: Approx. 0.9W
14. Dielectric Withstand Voltage: 500VAC 1min
15. Actuation Time (Unit: ms): ≤10
16. Release Time (Unit: ms): ≤10
17. Insulation resistance (unit: MΩ): 100
18. Maximum rated switching current (DC): 60
19. Maximum switching voltage (DC): 16
20. Temperature range: -40°C to 125°C
21. Mechanical endurance (unit: cycles): 10,000,000
22. Electrical endurance (units): 100,000 (For more details, please refer to the sample)
23. Product application areas: Automatic doors and windows, central door locks, sunroof control, seat adjustment, mirror adjustment
24. Weight (units: g): Approx. 6.5
25. Volume (units: mm³): 12 × 13.8 × 14

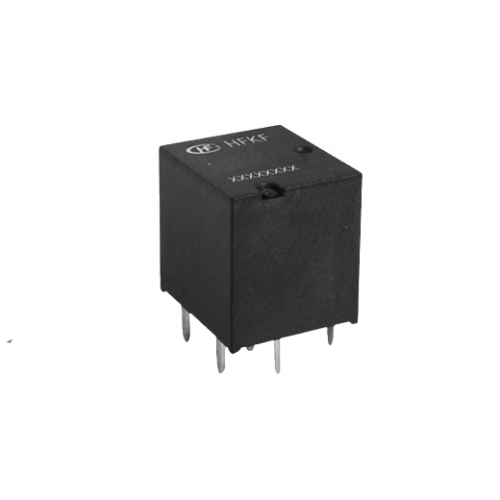

25A Automotive Relay HFKF-T/12-BZSPT Dual-Pole Changeover 0.9W
US$ 12.99 / 1 Piece
1Piece Minimum order
Type:
Relay
Category:
Automotive
Brand:
Xiaoxibian
About this item
- This 25A HFKF-T/12-BZSPT automotive relay is compatible with all standard 12V passenger cars, light trucks, and aftermarket accessory wiring setups, pairing seamlessly with common dual-pole relay sockets.
- Crafted with high-conductivity copper contacts and flame-retardant impact-resistant ABS housing, this 0.9W dual-pole changeover relay resists under-hood heat, vibration, and corrosion for long service life.
- This brand new, factory-calibrated 25A automotive relay passes strict pre-shipment electrical performance testing to guarantee no manufacturing defects and full compliance with OEM specifications.
- Perfect for controlling vehicle fog lights, cooling fans, aftermarket audio systems, trailer lighting circuits, and other accessories that require stable dual-pole changeover switching support.
- Each HFKF-T/12-BZSPT relay ships in individual anti-static, moisture-sealed packaging to protect sensitive internal electrical components from damage during transit and long-term storage.
