25A Motor Load
Ultra-Compact
Changeover Contact Configuration
Single or Dual Relay (8-Pin) Options Available
Class H (180°C) Coil Insulation Rating
1. Coil Voltage Type: DC
2. Coil Operating Voltage: 12V
3. Contact Configuration: Two Changeover Groups
4. Number of Contacts: Double Contacts
5. Lead Form: PCB Mount
6. Mounting Type: PCB Mount
7. Package Type: Solder Mask Type
8. Coil Power: 0.9W
9. Coil Characteristic: Monostable
10. Contact Material: T: AgSnO₂
11. Packaging: Tube or Tape Reel
12. Load Voltage: 12V
13. Rated Coil Power: Approx. 0.9W
14. Dielectric Withstand Voltage: 500VAC 1min
15. Actuation Time (Unit: ms): ≤10
16. Release Time (Unit: ms): ≤10
17. Insulation resistance (unit: MΩ): 100
18. Maximum rated switching current (DC): 60
19. Maximum switching voltage (DC): 16
20. Temperature range: -40°C to 125°C
21. Mechanical endurance (unit: cycles): 10,000,000
22. Electrical endurance (units): 100,000 (For more details, please refer to the sample)
23. Product application areas: Automatic doors and windows, central door locks, sunroof control, seat adjustment, mirror adjustment
24. Weight (units: g): Approx. 6.5
25. Volume (units: mm³): 12 × 13.8 × 14

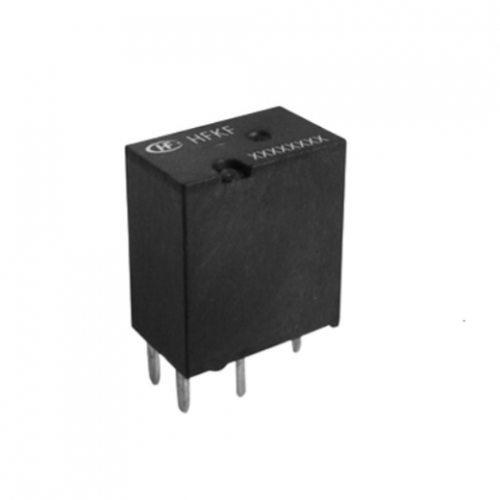

25A Automotive Relay HFKF-T/12-BZPT Dual-Changeover 8-Pin
US$ 12.99 / 1 Piece
1Piece Minimum order
Type:
Relay
Category:
Automotive
Brand:
Xiaoxibian
About this item
- This 25A HFKF-T/12-BZPT dual-changeover 8-pin automotive relay is universally compatible with all 12V passenger cars, light trucks, off-road vehicles, and custom aftermarket electrical setups for consistent circuit control.
- Built with a flame-retardant high-temperature housing, silver-plated conductive copper contacts, and heavy-duty internal coils, this relay delivers steady 25A current capacity and exceptional resistance to wear, corrosion, and vibration.
- This brand new factory-tested HFKF-T/12-BZPT relay meets strict OEM performance specifications, with zero manufacturing defects or cosmetic damage to ensure full functionality immediately upon installation.
- Perfect for managing automotive cooling fans, fuel pumps, LED lighting kits, power windows, and security alarm systems, this dual-changeover design supports seamless switching between two independent circuits for versatile use cases.
- Each relay is packaged in a static-sealed, moisture-proof protective bag before shipping to prevent damage from dust, static discharge, and harsh transport conditions for intact arrival every time.
