25A Motor Load
Ultra-Compact
Changeover Contact Configuration
Single or Dual Relay (8-Pin) Options Available
Class H (180°C) Coil Insulation Rating
1. Coil Voltage Type: DC
2. Coil Operating Voltage: 12V
3. Contact Configuration: Two Changeover Groups
4. Number of contacts: Double contacts
5. Lead type: PCB-mount
6. Mounting type: PCB mounting
7. Package type: Solder mask type
8. Coil power: -:0.655
9. Coil characteristic: Monostable
10. Contact material: T:AgSnO₂
11. Packaging: Tube or reel packaging
12. Load voltage: 12
13. Rated coil power: Approx. 0.65W
14. Dielectric withstand voltage: 500VAC 1min
15. Actuation time (Unit: ms): ≤10
16. Release time (Unit: ms): ≤10
17. Insulation resistance (unit: MΩ): 100
18. Maximum rated switching current (DC): 60
19. Maximum switching voltage (DC): 16
20. Temperature range: -40°C to 125°C
21. Mechanical endurance (unit: cycles): 10,000,000
22. Electrical endurance (units): 100,000 (For more details, please refer to the sample)
23. Product application areas: Automatic doors and windows, central door locks, sunroof control, seat adjustment, mirror adjustment
24. Weight (units: g): Approx. 6.5
25. Volume (units: mm³): 12 × 14.5 × 14

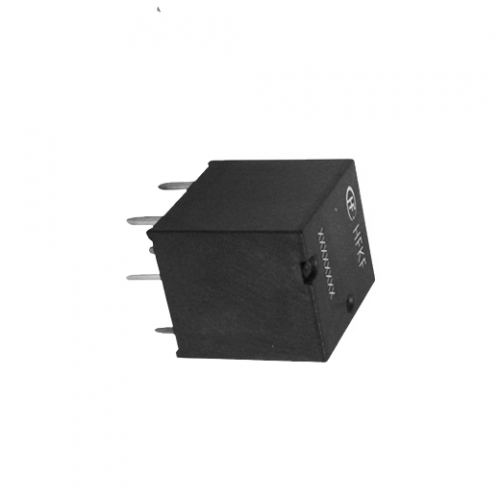

12VDC Automotive Relay HFKF-T/12-2ZT Dual-Changeover 8-Pin
US$ 12.99 / 1 Piece
1Piece Minimum order
Type:
Relay
Category:
Automotive
Brand:
Xiaoxibian
About this item
- This 12VDC HFKF-T/12-2ZT dual-changeover 8-pin relay is compatible with most passenger cars, light-duty trucks, and custom automotive electrical builds requiring 12-volt dual-circuit control.
- Built with corrosion-resistant copper alloy contact pins and a flame-retardant hard plastic housing, this relay holds up to regular under-hood vibration, heat, and moisture for years of reliable use.
- This is a brand new, factory-tested OEM-grade relay that matches or outperforms original equipment specifications for your vehicle’s electrical system components.
- It works perfectly for controlling automotive headlight arrays, fog light systems, power window motors, horn circuits, and other 12V electrical loads that need dual-changeover switching.
- Every relay is shipped in individual anti-static, moisture-proof packaging to prevent transit damage, so it arrives fully functional and ready for immediate installation.
