25A Motor Load
Ultra-Compact
Changeover Contact Configuration
Single/Dual Relay (8-Pin) Options Available
Class H (180°C) Coil Insulation Rating
1. Coil Voltage Type: DC
2. Coil Operating Voltage: 12V
3. Contact Configuration: Dual Changeover
4. Number of Contacts: Double Contact
5. Lead Form: PCB Mount
6. Mounting Type: PCB Mount
7. Package Type: Plastic Encapsulated
8. Coil Power: -:0.655
9. Coil Characteristic: Monostable
10. Contact Material: T:AgSnO₂
11. Packaging: Tube or Tape Reel
12. Load Voltage: 12V
13. Rated Coil Power: Approx. 0.65W
14. Dielectric Withstand Voltage: 500VAC 1min
15. Operating Time (Unit: ms): ≤10
16. Release Time (Unit: ms): ≤10
17. Insulation resistance (unit: MΩ): 100
18. Maximum rated switching current (DC): 60
19. Maximum switching voltage (DC): 16
20. Temperature range: -40°C to 125°C
21. Mechanical endurance (unit: cycles): 10,000,000
22. Electrical endurance (units): 100,000 (For more details, please refer to the sample)
23. Product application areas: Automatic doors and windows, central door locks, sunroof control, seat adjustment, mirror adjustment
24. Weight (units: g): Approx. 6.5
25. Volume (units: mm³): 12 × 14.5 × 14

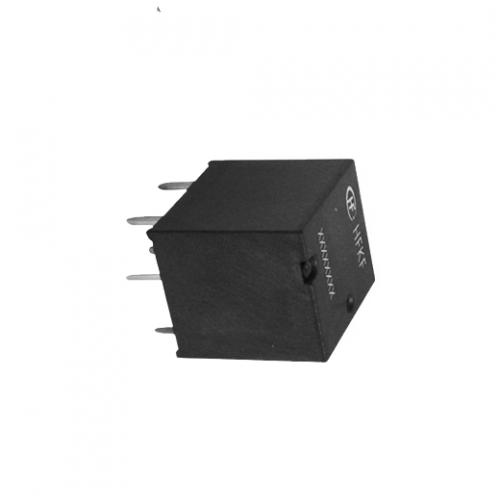

60DC Automotive Relay HFKF-T/12-2ZST Dual-Changeover 8-Pin
US$ 12.99 / 1 Piece
1Piece Minimum order
Type:
Relay
Category:
Automotive
Brand:
Xiaoxibian
About this item
- This 60DC HFKF-T/12-2ZST dual-changeover 8-pin automotive relay matches OEM specifications for a plug-and-play fit across most passenger cars, light trucks, and modified automotive electrical setups.
- Built with corrosion-resistant copper alloy contacts and a flame-retardant, impact-proof hard plastic housing, this relay withstands extreme under-hood temperatures, vibration, and moisture for consistent, long-lasting performance.
- This is a brand new, factory-calibrated automotive relay that undergoes rigorous continuity and load testing prior to shipping to guarantee no defects and reliable operation out of the package.
- Perfect for powering and controlling high-current automotive systems including fuel pumps, cooling fans, headlights, fog lights, and aftermarket alarm systems, this dual-changeover unit safely distributes power across two separate circuits.
- Each individual relay ships in an anti-static sealed plastic bag to prevent electrical damage during transit, with bulk packaging options available for repair shops and aftermarket parts resellers upon request.
