25A Motor Load
Ultra-Compact
Changeover Contact Configuration
Single/Dual Relay (8-Pin) Options Available
Class H (180°C) Coil Insulation Rating
1. Coil Voltage Type: DC
2. Coil Operating Voltage: 12V
3. Contact Configuration: Dual Changeover
4. Number of Contacts: Double Contact
5. Lead Form: PCB Mount
6. Mounting Type: PCB Mount
7. Package Type: Plastic Encapsulated
8. Coil Power: 0.9W
9. Coil Characteristic: Monostable
10. Contact Material: T: AgSnO₂
11. Packaging: Tube or Tape Reel
12. Load Voltage: 12V
13. Rated Coil Power: Approx. 0.9W
14. Dielectric Withstand Voltage: 500VAC 1min
15. Actuation Time (Unit: ms): ≤10
16. Release Time (Unit: ms): ≤10
17. Insulation resistance (unit: MΩ): 100
18. Maximum rated switching current (DC): 60
19. Maximum switching voltage (DC): 16
20. Temperature range: -40°C to 125°C
21. Mechanical endurance (unit: cycles): 10,000,000
22. Electrical endurance (units): 100,000 (For more details, please refer to the sample)
23. Product application areas: Automatic doors and windows, central door locks, sunroof control, seat adjustment, mirror adjustment
24. Weight (units: g): Approx. 6.5
25. Volume (units: mm³): 12 × 14.5 × 14

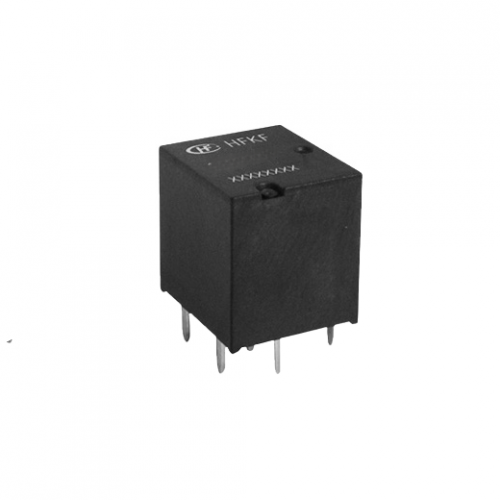

16DC Automotive Relay HFKF-T/12-2ZSPT Dual-Changeover 8-Pin
US$ 12.99 / 1 Piece
1Piece Minimum order
Type:
Relay
Category:
Automotive
Brand:
Xiaoxibian
About this item
- This 16DC HFKF-T/12-2ZSPT dual-changeover 8-pin automotive relay is compatible with all 12V vehicle electrical systems, matching OEM specifications for direct plug-and-play replacement of equivalent 8-pin relays.
- Crafted with high-grade flame-retardant plastic housing and pure copper conductive pins, this automotive relay offers superior heat resistance, corrosion protection, and stable electrical conductivity for long-lasting reliable performance.
- This dual-changeover 8-pin relay is brand new and factory-tested to meet strict industry performance standards, with no cosmetic defects or functional faults straight out of the box.
- Ideal for controlling vehicle headlights, fog lights, cooling fans, audio systems, and other high-current automotive accessories, this relay efficiently prevents circuit overload and extends the service life of your vehicle’s electrical components.
- Each HFKF-T/12-2ZSPT automotive relay comes securely packed in an anti-static sealed bag, with clear model and specification labeling to avoid misinstallation and protect the part from damage during transit.
