25A Motor Load
Ultra-Compact
Changeover Contact Configuration
Single/Dual Relay (8-Pin) Options Available
Class H (180°C) Coil Insulation Rating
1. Coil Voltage Type: DC
2. Coil Operating Voltage: 12V
3. Contact Configuration: Dual Changeover
4. Number of Contacts: Double Contact
5. Lead Form: PCB Mount
6. Mounting Type: PCB Mount
7. Package Type: Solder Mask Type
8. Coil Power: 0.9W
9. Coil Characteristic: Monostable
10. Contact Material: T: AgSnO₂
11. Packaging: Tube or Tape Reel
12. Load Voltage: 12V
13. Rated Coil Power: Approx. 0.9W
14. Dielectric Withstand Voltage: 500VAC 1min
15. Actuation Time (Unit: ms): ≤10
16. Release Time (Unit: ms): ≤10
17. Insulation resistance (unit: MΩ): 100
18. Maximum rated switching current (DC): 60
19. Maximum switching voltage (DC): 16
20. Temperature range: -40°C to 125°C
21. Mechanical endurance (unit: cycles): 10,000,000
22. Electrical endurance (units): 100,000 (For more details, please refer to the sample)
23. Product application areas: Automatic doors and windows, central door locks, sunroof control, seat adjustment, mirror adjustment
24. Weight (units: g): Approx. 6.5
25. Volume (units: mm³): 12 × 14.5 × 14

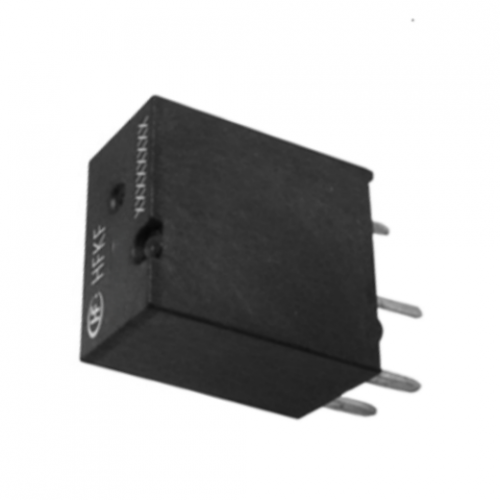

12VDC Automotive Relay HFKF-T/12-2ZPT Monostable 8-Pin
US$ 12.99 / 1 Piece
1Piece Minimum order
Brand:
. Load Voltage
Type:
Relay
Category:
Automotive
Brand:
Xiaoxibian
About this item
- This HFKF-T/12-2ZPT 12VDC 8-pin monostable automotive relay is compatible with most 12V passenger cars, light trucks, and utility vehicles, matching standard 8-pin OEM relay socket configurations for a hassle-free plug-and-play fit.
- Built with flame-retardant high-temperature plastic housing and corrosion-resistant copper alloy contact pins, this relay withstands harsh under-hood vibration, moisture, and temperature swings for consistent, long-lasting service life.
- This is a brand-new, factory-calibrated automotive relay with 100% functional testing of its monostable switching performance completed before leaving the production line, with no cosmetic or operational defects of any kind.
- Perfect for controlling vehicle lighting circuits, cooling fans, power window systems, starter accessories, and audio upgrades, this monostable relay delivers fast, reliable switching to prevent electrical overloads and extend the lifespan of connected components.
- Each individual relay comes in anti-static, shock-absorbent sealed packaging that protects internal components from static discharge and physical damage during transit, with clear printed labeling for quick part number and specification verification.
