25A motor load
Ultra-compact
Changeover contact configuration
Single or dual relays (8-pin) available
Class H (180°C) coil insulation rating
1. Coil Voltage Type: DC
2. Coil Operating Voltage: 12V
3. Contact Configuration: One changeover pair
4. Number of Contacts: Single contact
5. Lead Form: PCB Mount
6. Mounting Type: PCB Mount
7. Package Type: Plastic Encapsulated
8. Coil Power: 0.9W
9. Coil Characteristic: Monostable
10. Contact Material: T: AgSnO₂
11. Packaging: Tube or Tape Reel
12. Load Voltage: 12V
13. Rated Coil Power: Approx. 0.9W
14. Dielectric Withstand Voltage: 500VAC 1min
15. Actuation Time (Unit: ms): ≤10
16. Release Time (Unit: ms): ≤10
17. Insulation resistance (unit: MΩ): 100
18. Maximum rated switching current (DC): 60
19. Maximum switching voltage (DC): 16
20. Temperature range: -40°C to 125°C
21. Mechanical endurance (unit: cycles): 10,000,000
22. Electrical endurance (units): 100,000 (For more details, please refer to the sample)
23. Product application areas: Automatic doors and windows, central door locks, sunroof control, seat adjustment, mirror adjustment
24. Weight (units: g): Approx. 3.5
25. Volume (units: mm³): 12 × 7.3 × 14

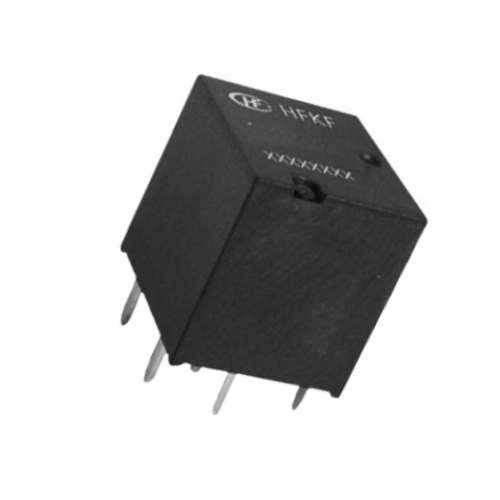

0.9W Automotive Relay HFKF-T/12-1ZSPT Single-Pole Changeover Contact
US$ 12.99 / 1 Piece
1Piece Minimum order
Type:
Relay
Category:
Automotive
Brand:
Xiaoxibian
About this item
- This 0.9W HFKF-T/12-1ZSPT automotive relay is fully compatible with 12V passenger cars, light trucks, and off-road vehicles using matching single-pole changeover relay slots, supporting hassle-free plug-and-play installation.
- Built with a heat-resistant flame-retardant ABS casing and premium silver-alloy contact points, this relay resists vibration, arc erosion, and under-hood corrosion for long-lasting, consistent performance.
- This brand new, factory-calibrated relay meets strict OEM performance standards, with zero prior use or functional defects to ensure reliable operation for up to 100,000 switching cycles.
- Perfect for replacing faulty relays in fuel pump, fog light, power window, central door lock, and audio upgrade circuits, it supports both normally open and normally closed circuit configurations for versatile use.
- Each relay ships in individual anti-static sealed packaging, protecting its sensitive internal electrical components from static discharge, dust, and moisture during transit and long-term storage.
