20A contact switching capacity
Six contact configurations available
Open-frame and molded-case options available
1. Coil voltage type: DC
2. Coil operating voltage: 12V
3. Contact configuration: Double normally closed
4. Number of contacts: Double contacts
5. Terminal configuration: PCB-mount
6. Mounting type: PCB mounting
7. Package type: Plastic-encapsulated
8. Coil power rating: Standard
9. Coil characteristic: Monostable
10. Contact Material: AgSnO₂
11. Packaging Type: Tube
12. Load Voltage: 12
13. Rated Coil Power: Approx. 1.1W
14. Dielectric Withstand Voltage: 500VAC 1min
15. Actuation Time (Unit: ms): ≤10
16. Release Time (Unit: ms): ≤10
17. Maximum rated switching current (DC): 14
18. Maximum switching voltage (DC): 90
19. Temperature range: -40°C to 85°C
20. Mechanical endurance (cycles): 10,000,000
21. Electrical endurance (units): 200,000
22. Application fields: Indicator/illumination/flashing light control, instrumentation, automatic doors/windows, cold start, central door locks, sun visor control
23. Weight (units: g): Approx. 12
24. Dimensions (units: mm³): 17.5 × 15 × 19.5

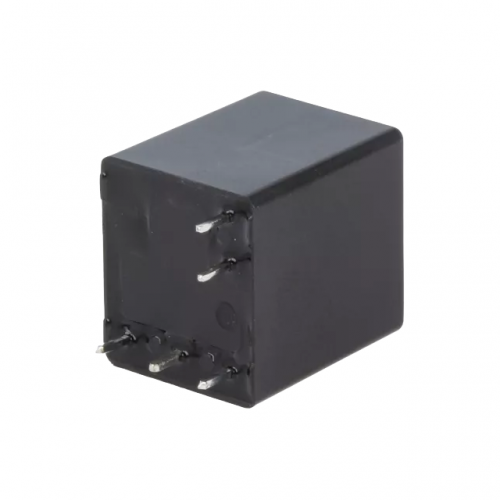

12VDC Automotive Relay HFKM/012-SDST Dual Normally Closed Double Contact
US$ 7.58 / 1 Piece
1Piece Minimum order
Type:
Relay
Category:
Automotive
Brand:
Xiaoxibian
About this item
- This 12VDC HFKM/012-SDST dual normally closed relay fits most 12V automotive and light truck electrical systems, offering a direct OEM replacement match for identical relay part numbers for hassle-free installation.
- Constructed with high-purity copper conductors and reinforced double silver contact points, this relay boasts outstanding heat resistance and minimal voltage drop even under sustained high-load operation.
- 100% brand new and factory performance tested before leaving the production line, this relay is free of defects, corrosion, or functional faults to deliver consistent long-term operation.
- Perfect for powering automotive security systems, fog light circuits, power door lock controls, trailer lighting hookups, and other 12V auxiliary electrical accessories requiring reliable circuit switching.
- Packaged in a static-shielding sealed pouch to guard against electrostatic damage, moisture, and dust during shipping, the relay arrives fully protected and ready for immediate use.
